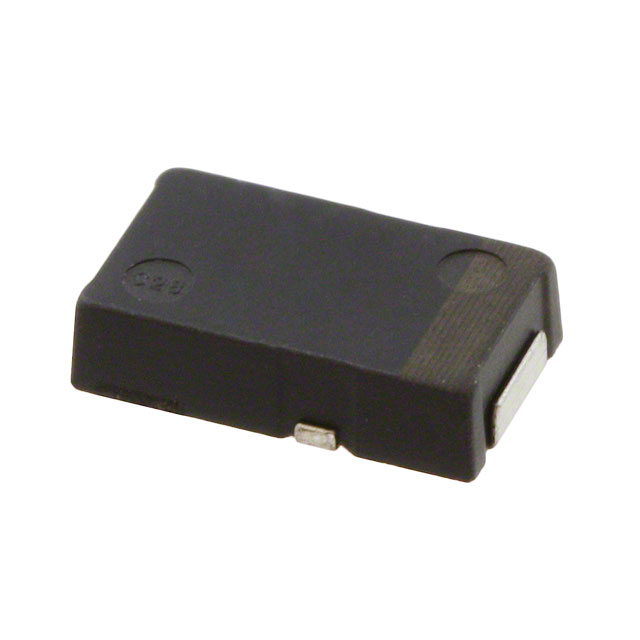

EEF-LX Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
CAP ALUM POLY 330UF 20% 2.5V SMD
| Part | Package / Case | Package / Case | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Ripple Current @ High Frequency | Tolerance | Lifetime @ Temp. | Capacitance | Mounting Type | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | ESR (Equivalent Series Resistance) | Voltage - Rated | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 7343 Metric | 2917 | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7.5 A | 20 % | 2000 Hrs | 330 µF | Surface Mount | Polymer | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 105 ░C | -55 °C | 6 mOhms | 2.5 V | 2 mm | 0.079 in | General Purpose |
 Panasonic Industrial Automation Sales | 7343 Metric | 2917 | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 8.5 A | 20 % | 2000 Hrs | 330 µF | Surface Mount | Polymer | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 105 ░C | -55 °C | 4.5 mOhms | 2.5 V | 2 mm | 0.079 in | General Purpose |
Panasonic Industrial Automation Sales | 7343 Metric | 2917 | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7.5 A | 20 % | 2000 Hrs | 330 µF | Surface Mount | Polymer | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 105 ░C | -55 °C | 6 mOhms | 2 VDC | 2.1 mm | 0.083 " | General Purpose |
Panasonic Industrial Automation Sales | 7343 Metric | 2917 | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 8.5 A | 20 % | 2000 Hrs | 470 µF | Surface Mount | Polymer | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 105 ░C | -55 °C | 4.5 mOhms | 2.5 V | 1.9 mm | 0.075 in | General Purpose |
Panasonic Industrial Automation Sales | 7343 Metric | 2917 | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 7.5 A | 20 % | 2000 Hrs | 470 µF | Surface Mount | Polymer | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 105 ░C | -55 °C | 6 mOhms | 2.5 V | 1.9 mm | 0.075 in | General Purpose |
Panasonic Industrial Automation Sales | 7343 Metric | 2917 | 0.287 " | 4.3 mm | 0.169 " | 7.3 mm | 8.5 A | 20 % | 2000 Hrs | 330 µF | Surface Mount | Polymer | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | 105 ░C | -55 °C | 4.5 mOhms | 2 VDC | 2.1 mm | 0.083 " | General Purpose |
