CFS-1002 Series

Catalog

SWITCH SLIDE DIP SPST 0.1A 6V

Part	Actuator Level	Electrical Life	Pitch [x]	Pitch	Pitch [x]	Length	Length	Contact Material	Body Material	Circuit	Height Above Board	Height Above Board	Actuator Type	Number of Positions	Voltage Rating	Current Rating (Amps)	Termination Style	Contact Finish	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]

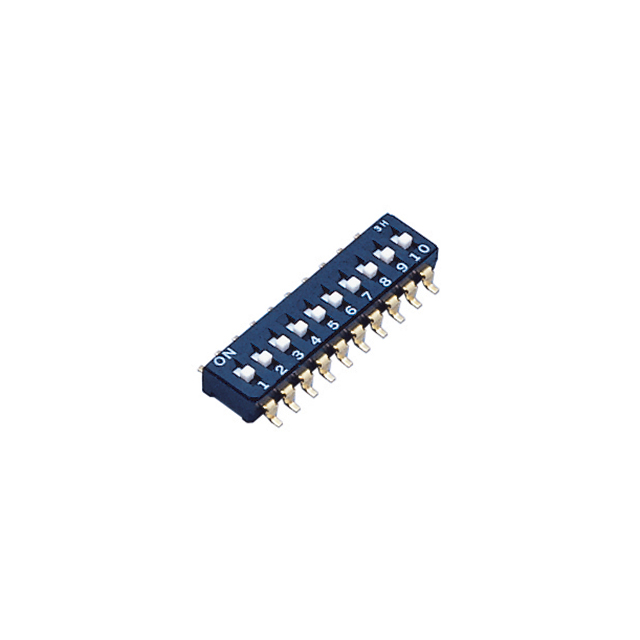

Nidec Components Corporation CFS-1002MB	Raised	1000 Cycles	0.1 in	Full	2.54 mm	26.9 mm	1.059 "	Copper Alloy	Polyphenylene Sulfide (PPS)	SPST	0.169 in	4.3 mm	Slide (Standard)	10	6 VDC	100 mA	Gull Wing	Gold	Surface Mount	85 °C	-40 °C
Nidec Components Corporation CFS-1002TA	Raised	1000 Cycles	0.1 in	Full	2.54 mm	26.9 mm	1.059 "	Copper Alloy	Polyphenylene Sulfide (PPS)	SPST	0.177 in	4.5 mm	Slide (Standard)	10	6 VDC	100 mA	J Lead	Gold	Surface Mount	85 °C	-40 °C

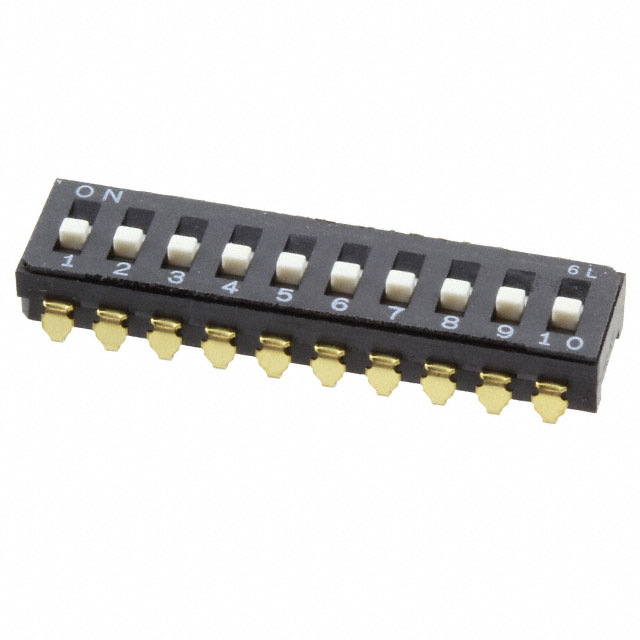

Nidec Components Corporation CFS-1002MA	Raised	1000 Cycles	0.1 in	Full	2.54 mm	26.9 mm	1.059 "	Copper Alloy	Polyphenylene Sulfide (PPS)	SPST	0.178 "	4.52 mm	Slide (Standard)	10	6 VDC	100 mA	J Lead	Gold	Surface Mount	85 °C	-40 °C
Nidec Components Corporation CFS-1002TB	Raised	1000 Cycles	0.1 in	Full	2.54 mm	26.9 mm	1.059 "	Copper Alloy	Polyphenylene Sulfide (PPS)	SPST	0.169 in	4.3 mm	Slide (Standard)	10	6 VDC	100 mA	Gull Wing	Gold	Surface Mount	85 °C	-40 °C

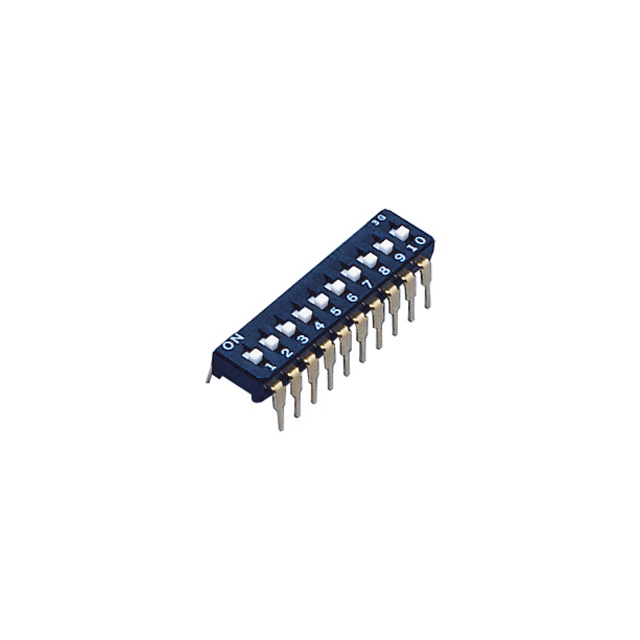

Nidec Components Corporation CFS-1002MC	Raised	1000 Cycles	0.1 in	Full	2.54 mm	26.9 mm	1.059 "	Copper Alloy	Polyphenylene Sulfide (PPS)	SPST	0.201 in	5.1 mm	Slide (Standard)	10	6 VDC	100 mA	PC Pin	Gold	Through Hole	85 °C	-40 °C
