ASA04 Series

Catalog

CONN PLG HSG FMALE 12POS INLINE

Part	Features	Housing Color	Type	Shell Material	Fastening Type	Note	Contact Shape	Connector Type	Mounting Type	Insert Material	Includes	Material Flammability Rating	Ingress Protection	Shell Finish	Orientation	Number of Positions	Shielding	Operating Temperature [Min]	Operating Temperature [Max]
TE Intercontec ASA046N0007050A000	Backshell Cable Clamp Coupling Nut	Silver	For Female Sockets	Zinc Die Cast	Push-Twist	Contacts Not Included	Circular	Plug Housing	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0	IP66 IP67	Nickel	Keyed	12	Shielded	-20 ░C	130 °C

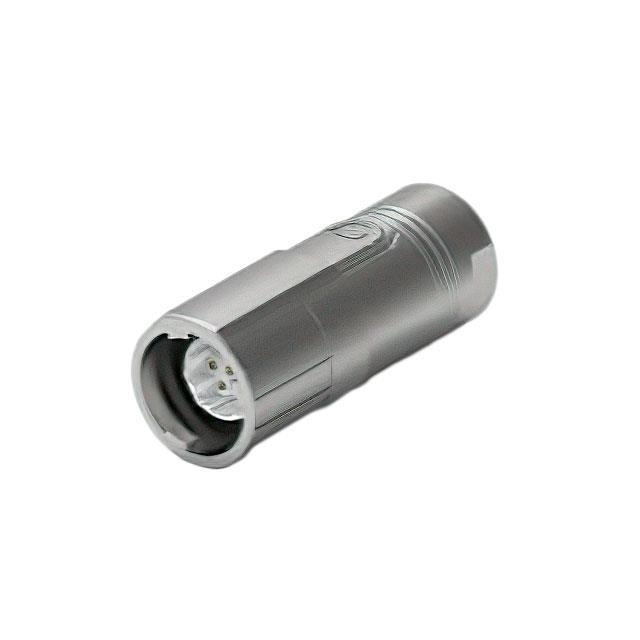

TE Intercontec ASA046N0086050A000	Backshell Cable Clamp Coupling Nut	Silver	For Female Sockets	Zinc Die Cast	Push-Twist	Contacts Not Included	Circular	Plug Housing	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0	IP66 IP67	Nickel	Keyed	12	Shielded	-20 ░C	130 °C

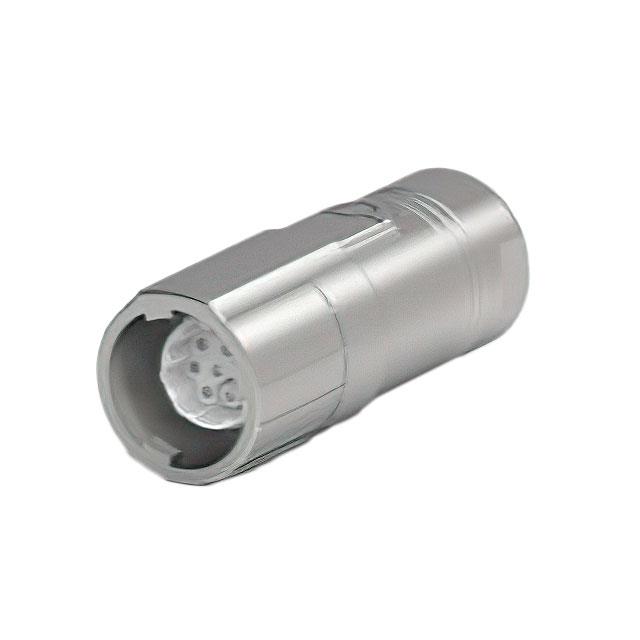

TE Intercontec ASA046N0085050A000	Backshell Cable Clamp Coupling Nut	Silver	For Female Sockets	Zinc Die Cast	Push-Twist	Contacts Not Included	Circular	Plug Housing	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	1 Backshell 1 Cable Clamp 1 Connector	UL94 V-0	IP66 IP67	Nickel	Keyed	12	Shielded	-20 ░C	130 °C
