1776304 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

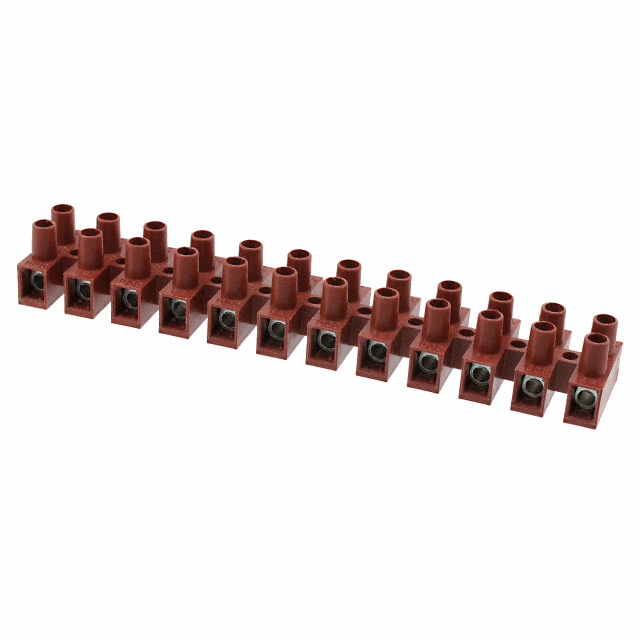

TSB100012DSHT=EUROPA T-BL,12MM
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Barrier Type | Terminal Block Type | Pitch [x] | Pitch [x] | Material - Insulation | Color | Mounting Type | Terminal Screw Finish | Top Termination | Current Rating (Amps) | Material Flammability Rating | Terminal Screw Material | Bottom Termination | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 24 AWG | 10 AWG | Enclosed | Eurostyle Terminal Strip | 12 mm | 0.472 in | Polyamide (PA66) Nylon 6/6 | Brown | Chassis Panel | Non-Hexavalent Chromate Zinc | Screws | 40 A | UL94 V-0 | Steel | Closed | 2 | -50 °C | 160 °C | 250 VDC | 12 |
