RZE15 Series

Catalog

CONN EDGE DUAL FMALE 30POS 0.039

Part	Material - Insulation	Read Out	Number of Rows [custom]	Gender	Termination	Contact Type	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Card Type	Card Thickness	Card Thickness	Color	Number of Positions/Bay/Row	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]

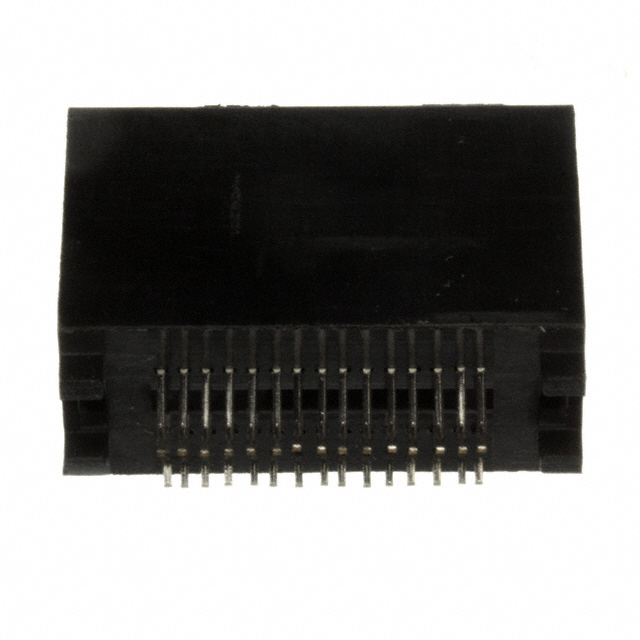

Sullins Connector Solutions RZE15DHRN	Polyphenylene Sulfide (PPS)	Dual	2	Female	Solder	Hairpin Bellows	1 mm	0.039 in	-65 ░C	125 °C	Board Edge Straddle Mount	Phosphor Bronze	0.25 Ám	10 Áin	Card Extender	Gold	Non Specified - Dual Edge	1.57 mm	0.062 in	Black	15	30

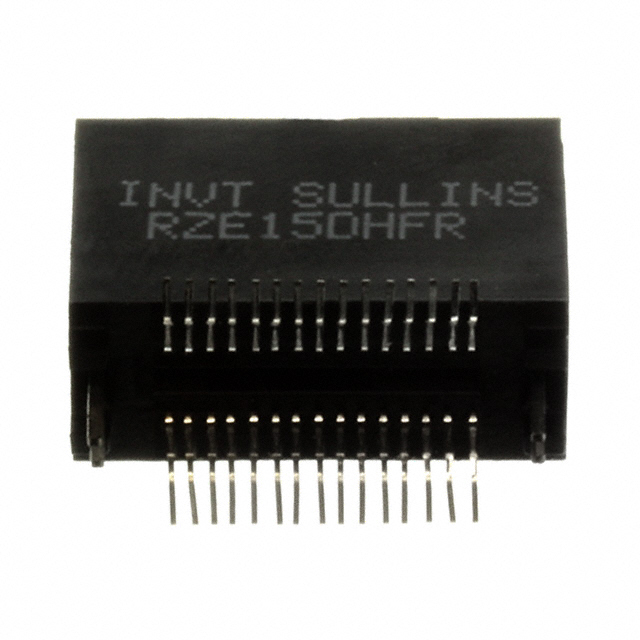

Sullins Connector Solutions RZE15DHFR	Polyphenylene Sulfide (PPS)	Dual	2	Female	Solder	Hairpin Bellows	1 mm	0.039 in	-65 ░C	125 °C	Surface Mount	Phosphor Bronze	0.25 Ám	10 Áin	Board Lock	Gold	Non Specified - Dual Edge	1.57 mm	0.062 in	Black	15	30

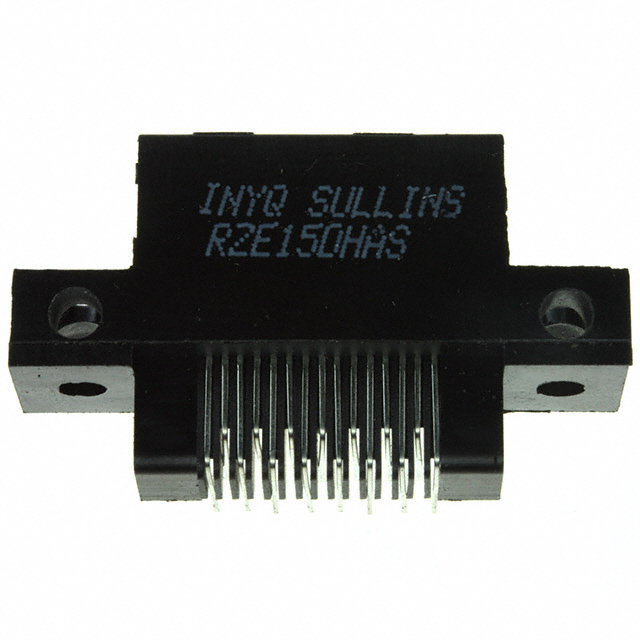

Sullins Connector Solutions RZE15DHAS	Polyphenylene Sulfide (PPS)	Dual	2	Female	Solder Staggered	Hairpin Bellows	1 mm	0.039 in	-65 ░C	125 °C	Right Angle Through Hole	Phosphor Bronze	0.25 Ám	10 Áin		Gold	Non Specified - Dual Edge	1.57 mm	0.062 in	Black	15	30	0.125 "	Side Mount Opening Unthreaded	3.18 mm
