TPS54824 Series

Catalog

4.5-V TO 17-V, 8-A SYNCHRONOUS SWIFT™ BUCK CONVERTER IN HOTROD™ QFN

Part	Mounting Type	Output Configuration	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Voltage - Input (Max) [Max]	Frequency - Switching [Min]	Frequency - Switching [Max]	Output Type	Voltage - Output (Max) [Max]	Number of Outputs	Topology	Voltage - Output (Min/Fixed)	Operating Temperature [Min]	Operating Temperature [Max]	Function	Current - Output	Package / Case	Voltage - Input (Min) [Min]	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Main Purpose	Utilized IC / Part	Regulator Topology	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Frequency - Switching	Contents
Texas Instruments TPS54824RNVT	Surface Mount	Positive	18-VQFN-HR	3.5	3.5	17 V	200 kHz	1.6 MHz	Adjustable	12 V	1	Buck	0.6 V	-40 °C	150 °C	Step-Down	8 A	18-PowerVFQFN	4.5 V

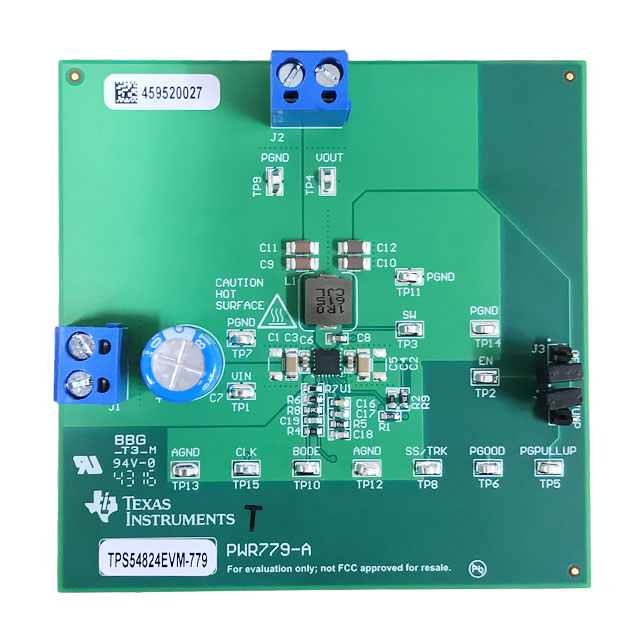

Texas Instruments TPS54824EVM-779																	8 A			Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	DC/DC Step Down	TPS54824	Buck	1.8 V	4.5 V	17 V	700 kHz	Board(s)
Texas Instruments TPS54824RNVR	Surface Mount	Positive	18-VQFN-HR	3.5	3.5	17 V	200 kHz	1.6 MHz	Adjustable	12 V	1	Buck	0.6 V	-40 °C	150 °C	Step-Down	8 A	18-PowerVFQFN	4.5 V
