GBC14D Series

Catalog

CONN HEADER SMD 28POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Finish - Post	Insulation Material	Insulation Height	Insulation Height	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Length - Mating	Contact Length - Mating	Contact Type	Termination	Connector Type	Style	Contact Shape	Shrouding	Fastening Type	Contact Finish - Mating	Number of Positions

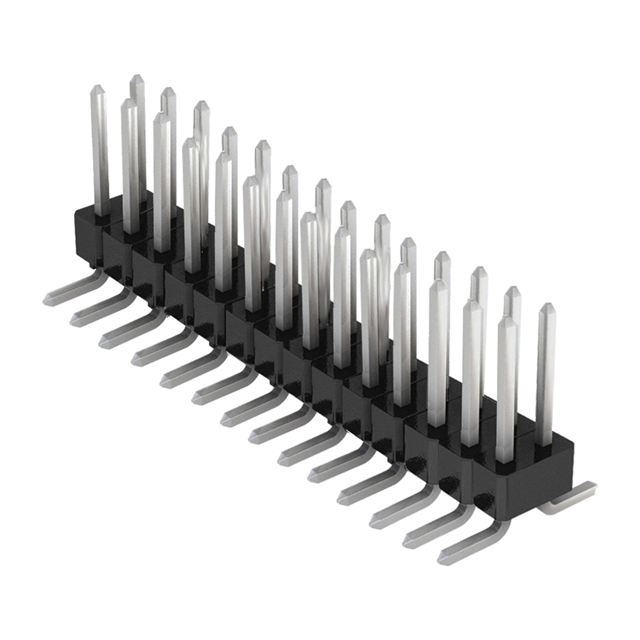

Sullins Connector Solutions GBC14DABN-M30	2.54 µm	100 µin	Phosphor Bronze	Tin	Nylon 9T Polyamide (PA9T)	0.1 in	2.54 mm	3 A	150 °C	-65 ░C	All	Surface Mount	0.25 µm	10 µin	0.1 in	2.54 mm	Black	UL94 V-0	0.1 "	2.54 mm	2	0.23 in	5.84 mm	Male Pin	Solder	Header Breakaway	Board to Board Cable	Square	Unshrouded	Push-Pull	Gold	28
