PPPC271 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 27POS 0.1 GOLD PCB

Part	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Shape	Fastening Type	Mounting Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Mating	Number of Positions Loaded	Current Rating (Amps)	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Termination	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Mating	Contact Length - Post	Contact Length - Post

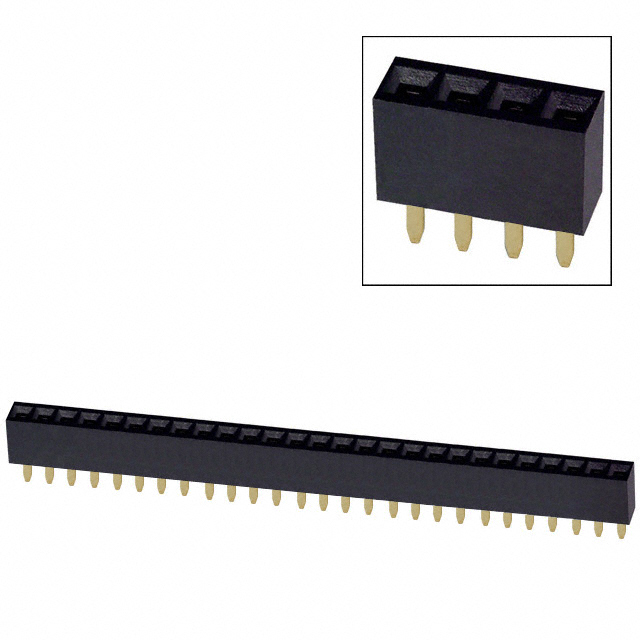

Sullins Connector Solutions PPPC271LFBN-RC	Phosphor Bronze	Polyester	Flash	Square	Push-Pull	Through Hole	0.1 "	2.54 mm	250 V	Header	0.126 "	3.2 mm	Gold	Black	Flash	All	3 A	1	Female Socket	-40 C	105 ░C	UL94 V-0	Solder	0.335 "	8.51 mm	27	Gold

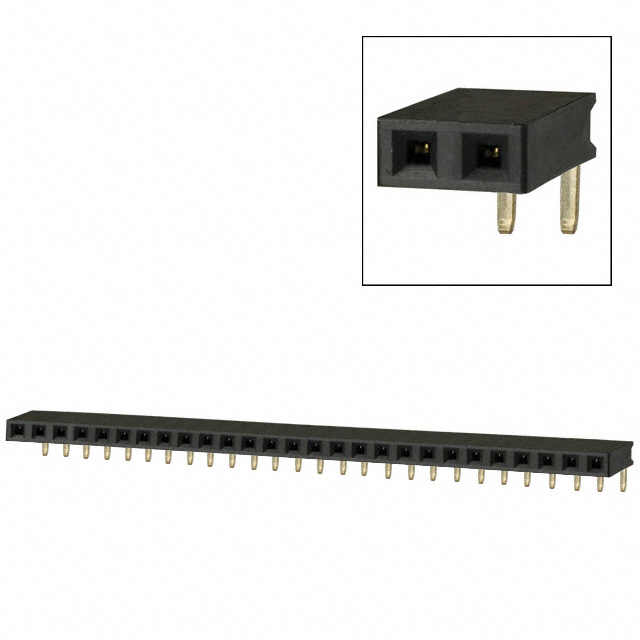

Sullins Connector Solutions PPPC271LGBN-RC	Phosphor Bronze	Polyester	Flash	Square	Push-Pull	Right Angle Through Hole	0.1 "	2.54 mm	250 V	Header			Gold	Black	Flash	All	3 A	1	Female Socket	-40 C	105 ░C	UL94 V-0	Solder	0.1 in	2.54 mm	27	Gold	0.124 in	3.15 mm

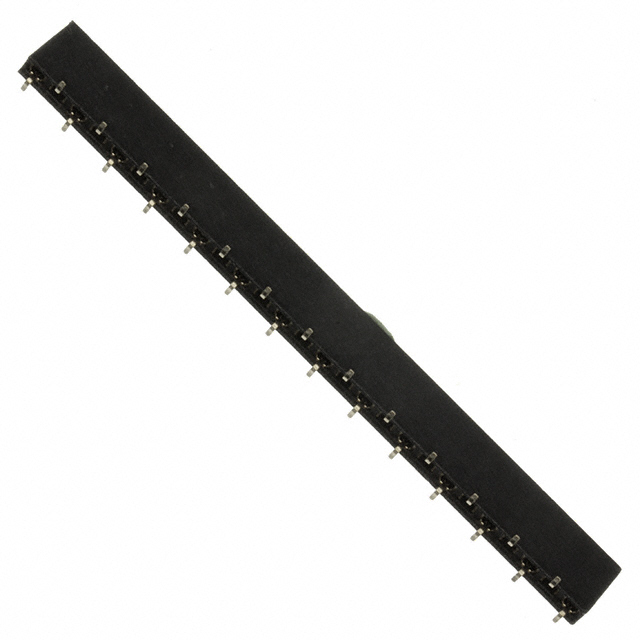

Sullins Connector Solutions PPPC271KFXC	Phosphor Bronze	Polyester	Flash	Square	Push-Pull	Surface Mount	0.1 "	2.54 mm	250 V	Header Top or Bottom Entry			Gold	Black	Flash	All	3 A	1	Female Socket	-40 C	105 ░C	UL94 V-0	Solder	0.28 in	7.1 mm	27	Gold
Sullins Connector Solutions PPPC271LFBN	Phosphor Bronze	Polyester	Flash	Square	Push-Pull	Through Hole	0.1 "	2.54 mm	250 V	Header	0.126 "	3.2 mm	Gold	Black	Flash	All	3 A	1	Female Socket	-40 C	105 ░C	UL94 V-0	Solder	0.335 "	8.51 mm	27	Gold
Sullins Connector Solutions PPPC271LGBN	Phosphor Bronze	Polyester	Flash	Square	Push-Pull	Right Angle Through Hole	0.1 "	2.54 mm	250 V	Header			Gold	Black	Flash	All	3 A	1	Female Socket	-40 C	105 ░C	UL94 V-0	Solder	0.1 in	2.54 mm	27	Gold	0.124 in	3.15 mm
