307-072 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 72POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Termination | Number of Rows [custom] | Color | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Contact Material | Card Type | Gender | Read Out | Number of Positions/Bay/Row | Mounting Type | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

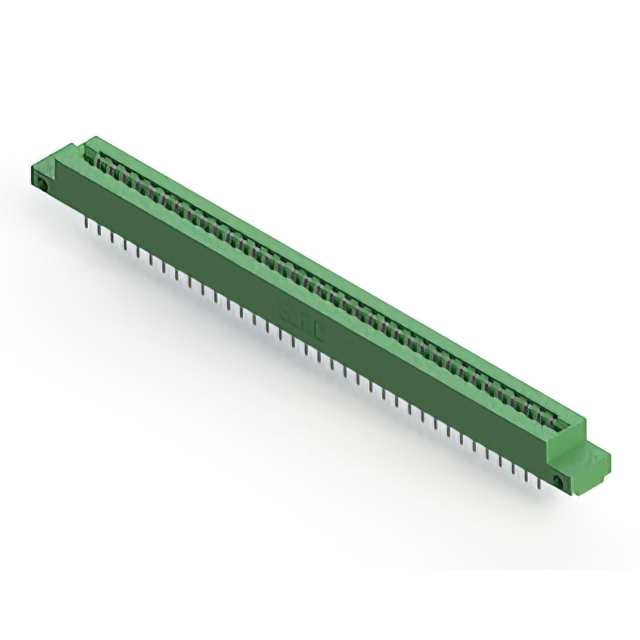

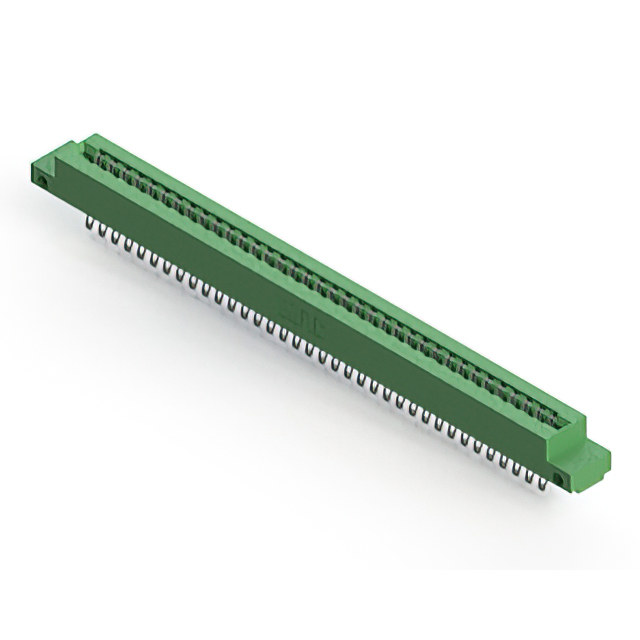

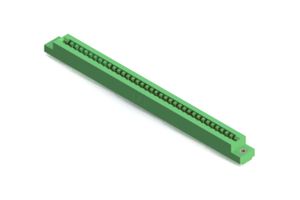

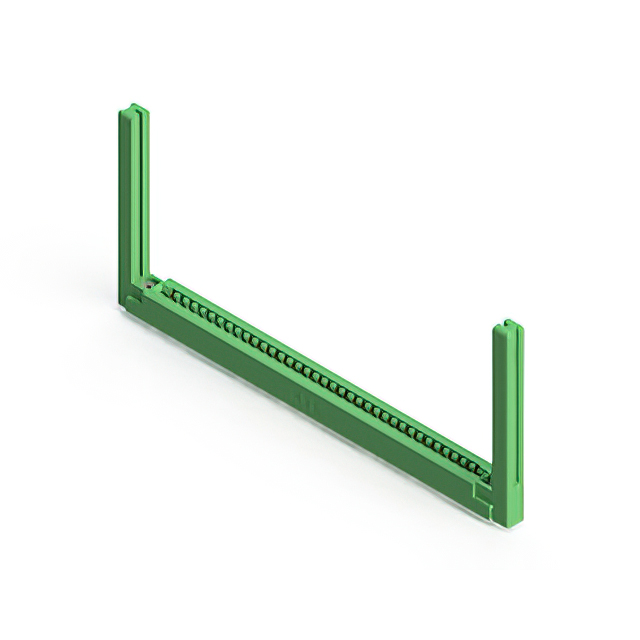

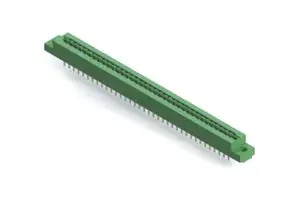

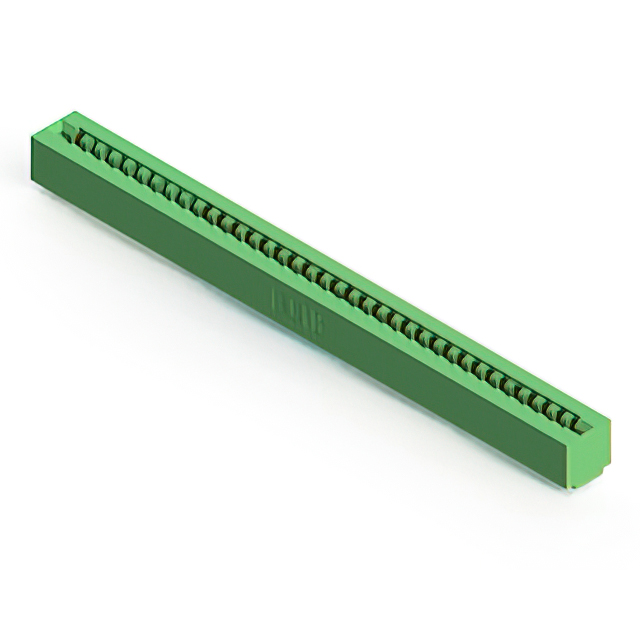

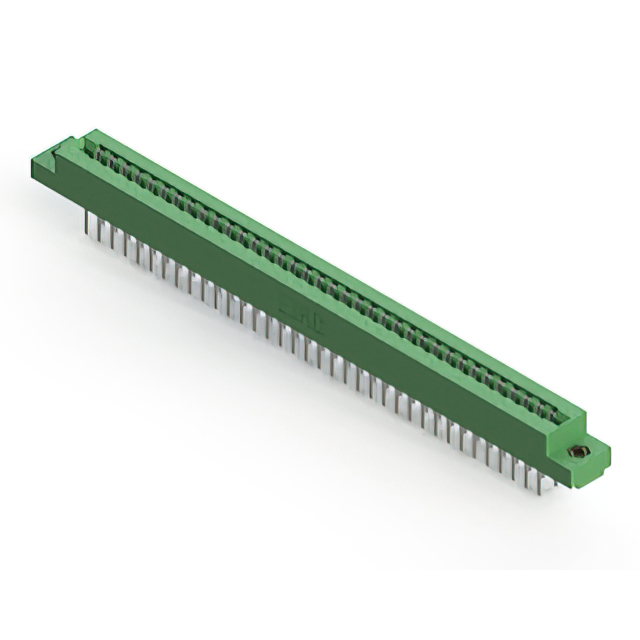

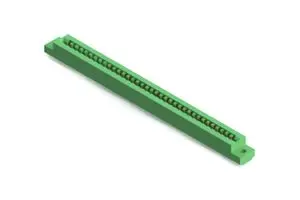

 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Solder | 2 | Green | 72 | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Through Hole | Semi Bellows | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Solder | 2 | Green | 72 | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Board Edge Straddle Mount | Semi Bellows | Card Extender | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Solder | 2 | Green | 72 | Tin | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Through Hole | Semi Bellows | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Solder | 2 | Green | 72 | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Through Hole | Semi Bellows | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Wire Wrap | 2 | Green | 72 | Tin | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Through Hole | Semi Bellows | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Solder | 2 | Green | 72 | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Through Hole | Semi Bellows | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Wire Wrap | 2 | Green | 72 | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Through Hole | Semi Bellows | |
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Solder | 2 | Green | 72 | Gold | 0.25 Ám | 10 Áin | -40 C | 105 ░C | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Through Hole | Semi Bellows | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Solder Eyelet(s) | 2 | Green | 72 | Tin | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Board Edge Straddle Mount | Semi Bellows | Card Extender | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | Solder | 2 | Green | 72 | Tin | -40 C | 105 ░C | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Copper Alloy | Non Specified - Dual Edge | Female | Dual | 36 | Through Hole | Semi Bellows |
