896-082 Series
Manufacturer: EDAC Inc.
Beta
⌘K

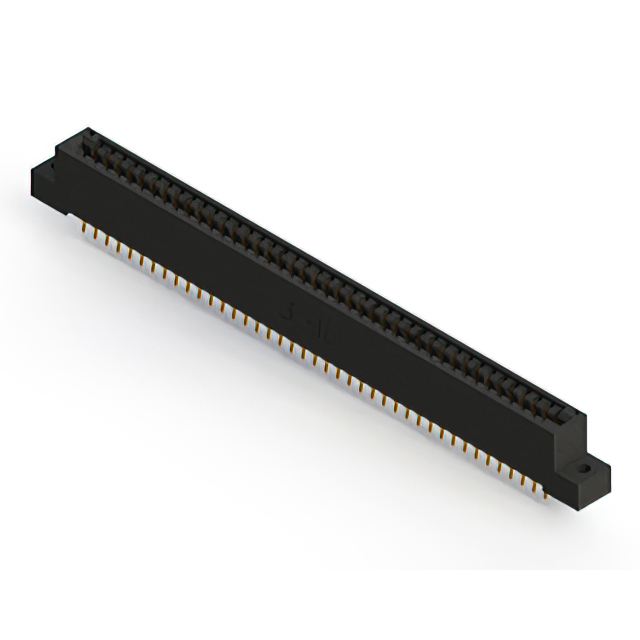

CONN EDGE DUAL FMALE 82POS 0.125
| Part | Termination Rows [custom] | Material - Insulation | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Mounting Type | Gender | Number of Rows [custom] | Color | Card Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Contact Type | Number of Positions | Termination | Features | Read Out | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 41 | Board Edge Straddle Mount | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Solder | Card Extender | Dual | Copper Alloy |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 41 | Through Hole | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Wire Wrap | Dual | Copper Alloy | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 4-40 Threaded Insert Top Mount Opening | 41 | Through Hole | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Wire Wrap | Dual | Copper Alloy | |||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 41 | Through Hole | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Wire Wrap | Dual | Copper Alloy | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | 41 | Board Edge Straddle Mount | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Solder | Card Extender | Dual | Copper Alloy |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | 41 | Board Edge Straddle Mount | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Solder Eyelet(s) | Card Extender | Dual | Copper Alloy |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | 41 | Board Edge Straddle Mount | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Solder Eyelet(s) | Card Extender | Dual | Copper Alloy |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 0.156 " | 3.96 mm | 41 | Board Edge Straddle Mount | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Solder | Card Extender | Dual | Copper Alloy | |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | 41 | Board Edge Straddle Mount | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Solder Eyelet(s) | Card Extender | Dual | Copper Alloy |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | M3 Threaded Insert Top Mount Opening | 41 | Board Edge Straddle Mount | Female | 2 | Black | Non Specified - Dual Edge | Gold | 0.25 Ám | 10 Áin | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.18 mm | 0.125 in | Cantilever | 82 | Solder Eyelet(s) | Card Extender | Dual | Copper Alloy |
