88179 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

012 HOUSING FFC RCPT DR 100CL ROHS COMPLIANT: YES

Part	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Housing Color	Note	Current Rating (Amps)	Wire Gauge [Min]	Wire Gauge [Max]	Flat Flex Type	Locking Feature	Connector Type	Number of Positions	Voltage Rating	Material Flammability Rating	Features	Pitch	Pitch	Housing Material	FFC, FCB Thickness	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]

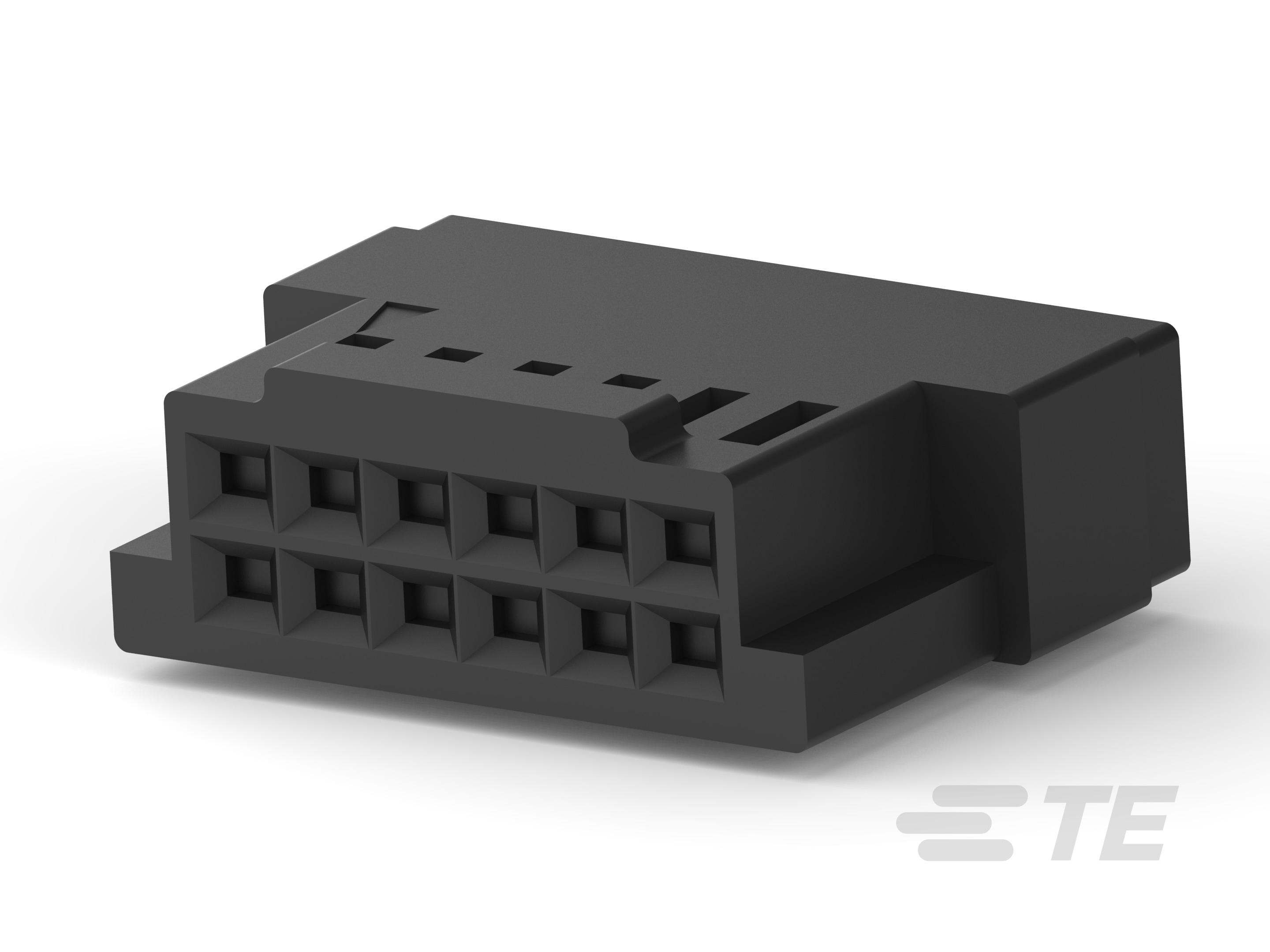

TE Connectivity AMP Connectors 3-88179-4	0.045 "	1.75 mm	0.069 in	1.14 mm	Black	Contacts Not Included	1.5 A	22 AWG	32 AWG	Discrete Wire FFC	Detent Lock	Housing for Female Contacts	12	300 VDC	UL94 V-0	Positions Stamped	0.1 "	2.54 mm	Glass Filled Nylon Polyamide (PA)	0.015 mm	2	105 ░C	-65 ░C
TE Connectivity AMP Connectors 2-88179-1	0.045 "	1.75 mm	0.069 in	1.14 mm	Black	Contacts Not Included	1.5 A	22 AWG	32 AWG	Discrete Wire FFC	Detent Lock	Housing for Female Contacts	40	300 VDC	UL94 V-0	Positions Stamped	0.1 "	2.54 mm	Glass Filled Nylon Polyamide (PA)	0.015 mm	2	105 ░C	-65 ░C
TE Connectivity AMP Connectors 3-88179-0	0.045 "	1.75 mm	0.069 in	1.14 mm	Black	Contacts Not Included	1.5 A	22 AWG	32 AWG	Discrete Wire FFC	Detent Lock	Housing for Female Contacts	10	300 VDC	UL94 V-0	Positions Stamped	0.1 "	2.54 mm	Glass Filled Nylon Polyamide (PA)	0.015 mm	2	105 ░C	-65 ░C
TE Connectivity AMP Connectors 88179-6	0.045 "	1.75 mm	0.069 in	1.14 mm	Black	Contacts Not Included	1.5 A	22 AWG	32 AWG	Discrete Wire FFC	Detent Lock	Housing for Female Contacts	38	300 VDC	UL94 V-0	Positions Stamped	0.1 "	2.54 mm	Glass Filled Nylon Polyamide (PA)	0.015 mm	2	105 ░C	-65 ░C

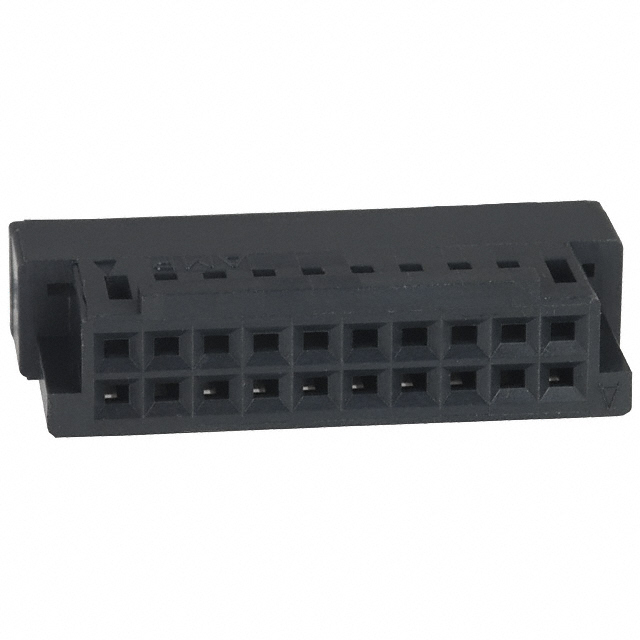

TE Connectivity AMP Connectors 88179-5	0.045 "	1.75 mm	0.069 in	1.14 mm	Black	Contacts Not Included	1.5 A	22 AWG	32 AWG	Discrete Wire FFC	Detent Lock	Housing for Female Contacts	20	300 VDC	UL94 V-0	Positions Stamped	0.1 "	2.54 mm	Glass Filled Nylon Polyamide (PA)	0.015 mm	2	105 ░C	-65 ░C
TE Connectivity AMP Connectors 4-88179-2	0.045 "	1.75 mm	0.069 in	1.14 mm	Black	Contacts Not Included	1.5 A	22 AWG	32 AWG	Discrete Wire FFC	Detent Lock	Housing for Female Contacts	22	300 VDC	UL94 V-0	Positions Stamped	0.1 "	2.54 mm	Glass Filled Nylon Polyamide (PA)	0.015 mm	2	105 ░C	-65 ░C
