PX0739 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

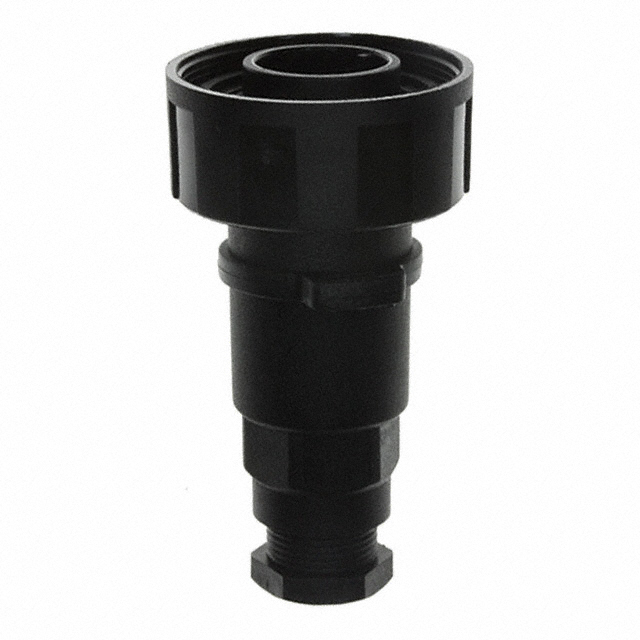

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT PLUG, 6 CONTACTS, SCREW PIN, THREADED
| Part | Backshell Material, Plating | Number of Positions | Contact Material | Features | Insert Material [custom] | Insert Material [custom] | Ingress Protection | Shielding | Mounting Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Shell Material | Orientation | Voltage Rating | Contact Finish - Mating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Termination | Material Flammability Rating | Primary Material | Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | Glass Filled Nylon Polyamide (PA) | 6 6 | Brass | Backshell Coupling Nut | Nylon | Polyamide (PA) | IP68 IP69K | Unshielded | Free Hanging (In-Line) | 0.315 in | 0.236 in | 8 mm | 6 mm | Glass Filled Nylon Polyamide (PA) | Keyed | 277 VAC | Nickel | Threaded | -20 ░C | 70 °C | 3 A | Screw | UL94 HB | Plastic | Black | Plug Male Pins |
BULGIN LIMITED | Glass Filled Nylon Polyamide (PA) | 6 | Brass | Backshell Coupling Nut | Nylon | Polyamide (PA) | IP68 IP69K | Unshielded | Free Hanging (In-Line) | 0.197 in | 0.138 " | 5 mm | 3.5 mm | Glass Filled Nylon Polyamide (PA) | Keyed | 277 VAC | Nickel | Threaded | -20 ░C | 70 °C | 3 A | Screw | UL94 HB | Plastic | Black | Plug Male Pins |
 BULGIN LIMITED | Glass Filled Nylon Polyamide (PA) | 6 | Brass | Backshell Coupling Nut | Nylon | Polyamide (PA) | IP68 IP69K | Unshielded | Free Hanging (In-Line) | 0.354 in 9 mm | 0.276 " 7 mm | Glass Filled Nylon Polyamide (PA) | Keyed | 277 VAC | Nickel | Threaded | -20 ░C | 70 °C | 3 A | Screw | UL94 HB | Plastic | Black | Plug Female Sockets |
