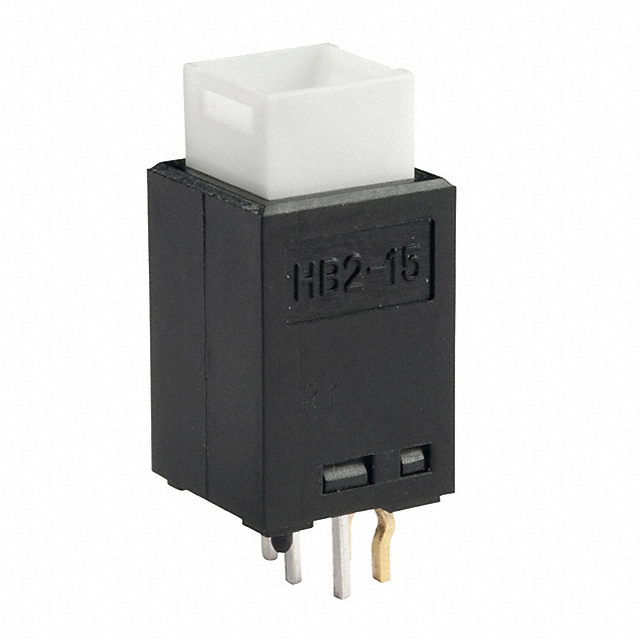

HB215SK Series
Manufacturer: NKK Switches
Beta
⌘K
SUBMINIATURE AUDIO/VIDEO PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Illumination Type, Color | Termination Style | Illumination Voltage (Nominal) | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Switch Function | Voltage Rating - DC | Type | Actuator Marking | Mounting Type | Voltage Rating - AC | Circuit | Actuator Type | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 100000 Cycles | Green/Red LED | PC Pin | 2 VDC 2.25 VDC | 50 °C | -25 °C | 0.4 VA | Off-Mom | 28 V | Illuminated Standard | No Marking | Through Hole | 28 V | SPST-NO | Plunger for Cap | |
 NKK Switches | 100000 Cycles | 100000 Cycles | Green/Red LED | PC Pin | 2 VDC 2.25 VDC | 50 °C | -25 °C | 0.4 VA | Off-Mom | 28 V | Illuminated Standard | No Marking | Through Hole | 28 V | SPST-NO | Button Square | Clear |
 NKK Switches | 100000 Cycles | 100000 Cycles | LED Red Yellow | PC Pin | 2 VDC 2.1 VDC | 50 °C | -25 °C | 0.4 VA | Off-Mom | 28 V | Illuminated Standard | No Marking | Through Hole | 28 V | SPST-NO | Button Square | Clear |
