29K102 Series
Manufacturer: Rosenberger
Beta
⌘K

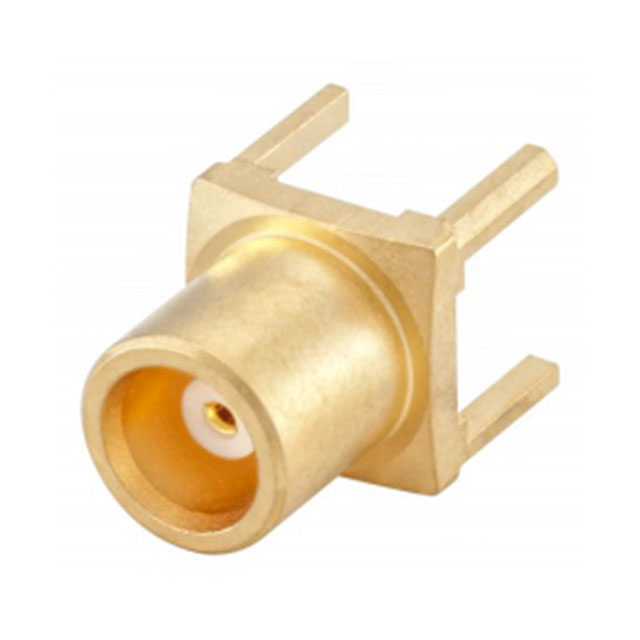

CONN MCX JACK STR 50OHM PCB
| Part | Body Material | Dielectric Material | Body Finish | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Plating | Voltage Rating | Connector Type | Frequency - Max [Max] | Housing Color | Fastening Type | Impedance | Number of Ports | Contact Termination | Shield Termination | Connector Style | Mounting Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | 155 C | -55 C | Gold | 335 V | Female Socket Jack | 6000 MHz | Gold | Snap-On | 50 Ohms | 1 | Solder | Solder | MCX | Through Hole | Beryllium Copper |
