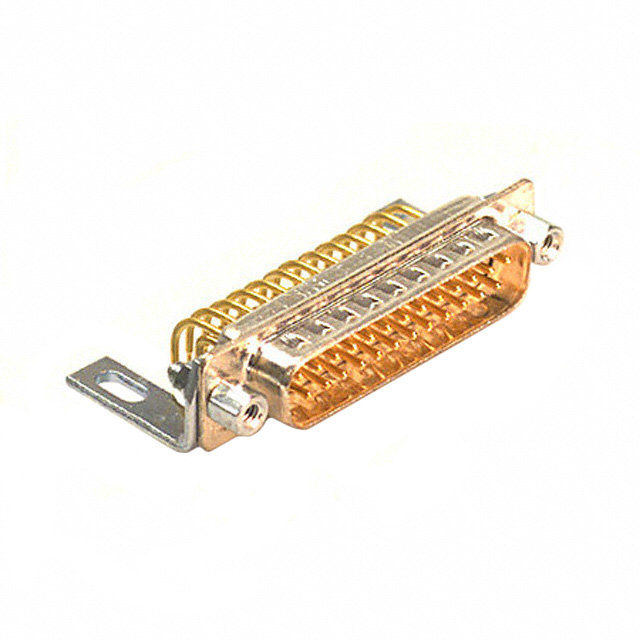

175-025 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 25POS R/A SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Color | Dielectric Material | Contact Material | Backset Spacing | Backset Spacing | Contact Type | Features | Contact Finish Thickness | Number of Rows [custom] | Current Rating (Amps) | Flange Feature | Material Flammability Rating | Number of Positions | Termination | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish | Connector Type | Connector Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | 100 °C | -50 °C | Beige | Polybutylene Terephthalate (PBT) Polyester | Brass | 0.454 " | 11.53 mm | Signal | Mounting Brackets | Flash | 2 | 5 A | 4-40 Mating Side Female Screwlock | UL94 V-0 | 25 | Solder | B DB | 3 | Gold | Receptacle Female Sockets | D-Sub | Panel Mount Right Angle Through Hole |
 NorComp Inc. | 100 °C | -50 °C | Beige | Polybutylene Terephthalate (PBT) Polyester | Brass | 0.454 " | 11.53 mm | Signal | Grounding Indents Mounting Brackets | Flash | 2 | 5 A | 4-40 Mating Side Female Screwlock | UL94 V-0 | 25 | Solder | B DB | 3 | Gold | Plug Male Pins | D-Sub | Panel Mount Right Angle Through Hole |
