MP3438 Series

Catalog

CONVERTER DC TO DC SINGLE STEP UP 0.8V TO 16V 8-PIN SOT-583 T/R

Part	Supplier Device Package	Output Configuration	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output (Max) [Max]	Function	Output Type	Mounting Type	Number of Outputs	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Min/Fixed)	Frequency - Switching	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Current - Output	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Regulator Topology	Utilized IC / Part	Contents
Monolithic Power Systems Inc. MP3438GTL-P	SOT-583	Positive	SOT-583	0.8 V	16 V	16 V	Step-Up	Adjustable	Surface Mount	1	Boost	-40 C	125 °C	16 V	1.2 MHz
Monolithic Power Systems Inc. MP3438GTL-Z	SOT-583	Positive	SOT-583	0.8 V	16 V	16 V	Step-Up	Adjustable	Surface Mount	1	Boost	-40 C	125 °C	16 V	1.2 MHz

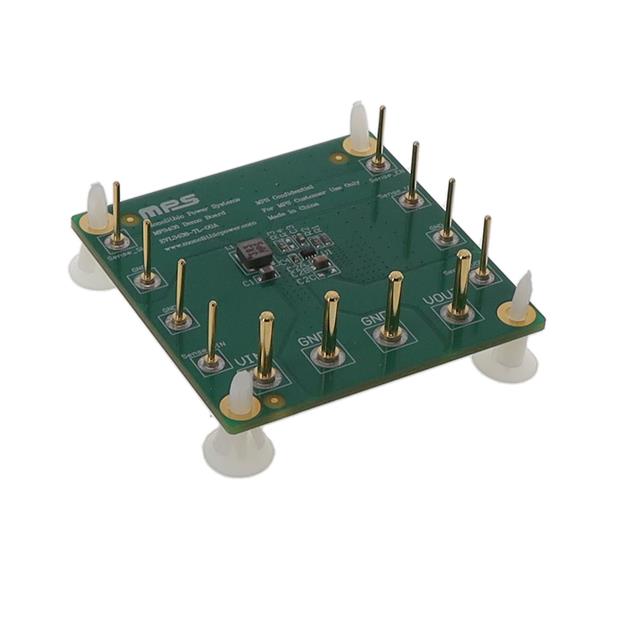

Monolithic Power Systems Inc. EVL3438-TL-00A															1.2 MHz	1	1 Non-Isolated Output Non-Isolated	Fully Populated	Board(s)	1.2 A	DC/DC Step Up	3 V	10 VDC	12 V	Boost	MP3438	Board(s)
