32RS247 Series
Manufacturer: Rosenberger
Beta
⌘K

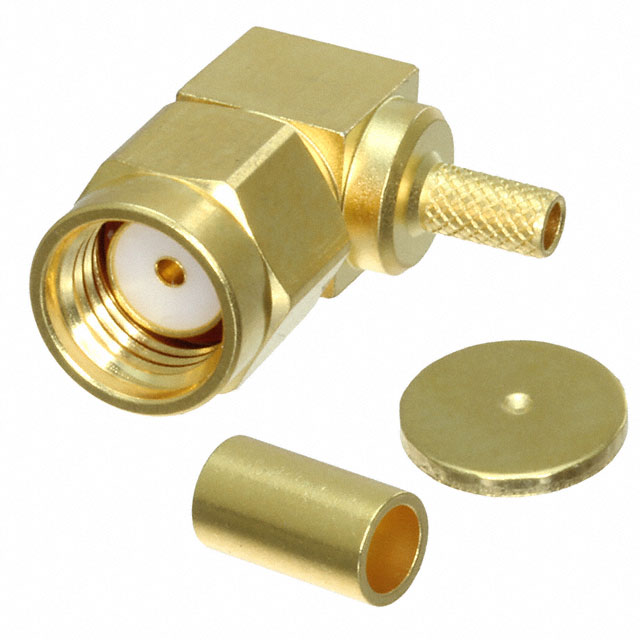

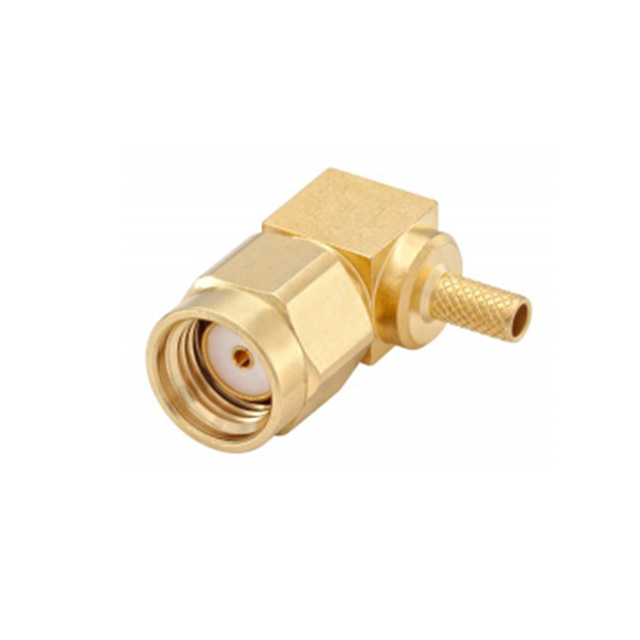

CONN RP-SMA PLUG R/A 50OHM SOLDR
| Part | Includes | Body Finish | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Center Contact Plating | Voltage Rating | Connector Style | Contact Termination | Housing Color | Connector Type | Center Contact Material | Cable Group | Number of Ports | Shield Termination | Impedance | Frequency - Max [Max] | Mounting Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 1 Connector 1 End Cap 1 Ferrule | Gold | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | Brass | Gold | 480 V | RP-SMA | Solder | Gold | Female Socket Plug | Beryllium Copper | 188A 316 RG-174A | 1 | Crimp | 50 Ohms | 12.4 GHz | Free Hanging (In-Line) Right Angle | Threaded |
