KP0215A Series

Catalog

PUSHBUTTON SWITCHES MINIATURE AUDIO/VIDEO PUSHBUTTON

Part	Mechanical Life	Electrical Life	Termination Style	Type	Color - Actuator/Cap	Mounting Type	Switch Function	Circuit	Illumination Type, Color	Actuator Type	Illumination Voltage (Nominal)	Actuator Marking	Voltage Rating - DC	Current Rating (Amps)	Features	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches KP0215ASAKG03RGBP-1SJB	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard	Clear	Through Hole	Off-Mom	SPST-NO	Blue Green LED Red	Button Square	2 VDC 2.9 VDC	No Marking	12 V	100 mA	Tactile/Audible Feedback	50 °C	-25 °C
NKK Switches KP0215ASBKG03RGBP-2FJB	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard	Clear	Through Hole	Off-Mom	SPST-NO	Blue Green LED Red	Button Square	2 VDC 2.9 VDC	No Marking	12 V	100 mA	Tactile/Audible Feedback	50 °C	-25 °C
NKK Switches KP0215ANBKG03RGBP-3TJB	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard	Clear	Through Hole	Off-Mom	SPST-NO	Blue Green LED Red	Button Square	2 VDC 2.9 VDC	No Marking	12 V	100 mA		50 °C	-25 °C

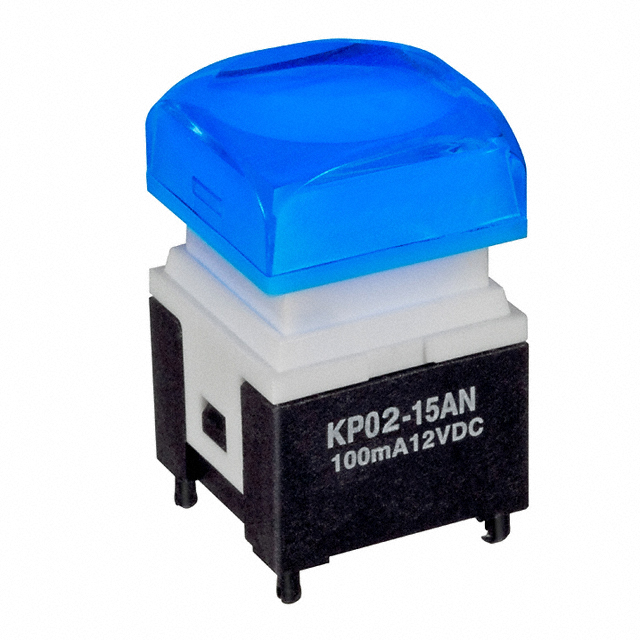

NKK Switches KP0215ANBKG03RGB-2SJB	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard	Clear	Through Hole	Off-Mom	SPST-NO	Blue Green LED Red	Button Square	2 VDC 2.9 VDC	No Marking	12 V	100 mA		50 °C	-25 °C
NKK Switches KP0215ANBKG03RGBP-2TJB	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard	Clear	Through Hole	Off-Mom	SPST-NO	Blue Green LED Red	Button Square	2 VDC 2.9 VDC	No Marking	12 V	100 mA		50 °C	-25 °C
NKK Switches KP0215ACBKG03RGB-3FJB	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard	Clear	Through Hole	Off-Mom	SPST-NO	Blue Green LED Red	Button Square	2 VDC 2.9 VDC	No Marking	12 V	100 mA	Tactile Feedback	50 °C	-25 °C
NKK Switches KP0215ACAKG03RGBP-1TJB	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard	Clear	Through Hole	Off-Mom	SPST-NO	Blue Green LED Red	Button Square	2 VDC 2.9 VDC	No Marking	12 V	100 mA	Tactile Feedback	50 °C	-25 °C
NKK Switches KP0215ASBKG03RGBP-2TJB	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard	Clear	Through Hole	Off-Mom	SPST-NO	Blue Green LED Red	Button Square	2 VDC 2.9 VDC	No Marking	12 V	100 mA	Tactile/Audible Feedback	50 °C	-25 °C
NKK Switches KP0215ACBKG03RGB-3TJB	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard	Clear	Through Hole	Off-Mom	SPST-NO	Blue Green LED Red	Button Square	2 VDC 2.9 VDC	No Marking	12 V	100 mA	Tactile Feedback	50 °C	-25 °C

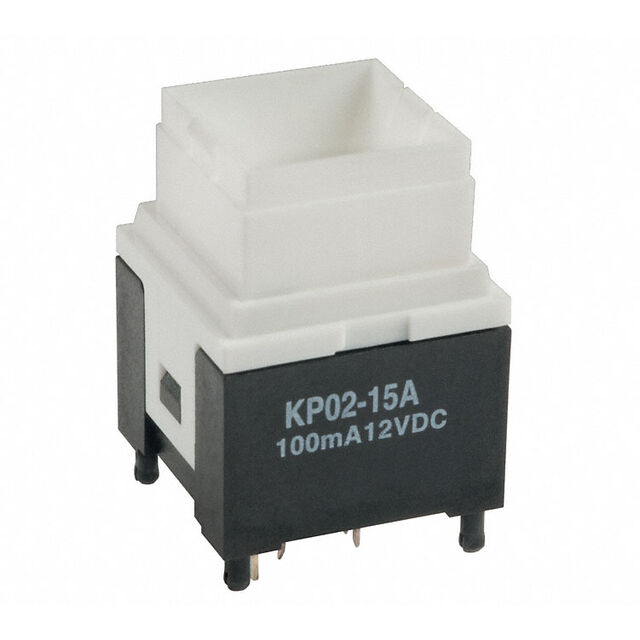

NKK Switches KP0215ANBKG03CF	5000000 Cycles	5000000 Cycles	PC Pin	Illuminated Standard		Through Hole	Off-Mom	SPST-NO	Green/Red LED	Plunger for Cap	2.1 VDC 3.5 VDC	No Marking	12 V	100 mA		50 °C	-25 °C
