FUS 600V F/A MIDGET .500A
Description
AI

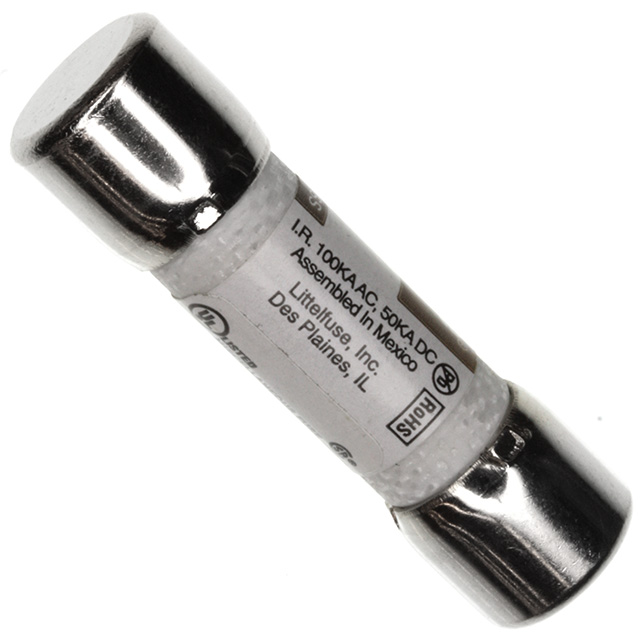

KLK.500 is a Midget fuse with an ampere rating of 0.5.
Beta
⌘K
FUS 600V F/A MIDGET .500A
FUS 600V F/A MIDGET .500A
| Part | Package / Case | Package / Case [y] | Package / Case [x] | Current Rating (Amps) | Approval Agency | Applications | Mounting Type | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Response Time | Fuse Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 5AG | 38 mm | 10 mm | 0.5 A | CE CSA QPL UL | Electrical Industrial | Requires Holder | 50 kA 100 kA | 600 VAC | 0.406 in | 38.1 mm | 1.5 in | 10.31 mm | Fast Blow | Cartridge | 500 V |
