R19155 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMP-MAX FEMALE - SMA FEMALE STRA
| Part | Body Material | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Fastening Type | Frequency - Max [Max] | Style | Conversion Type | Adapter Type | Convert To (Adapter End) | Center Gender | Adapter Series | Convert From (Adapter End) | Impedance | Mounting Type | Center Contact Plating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

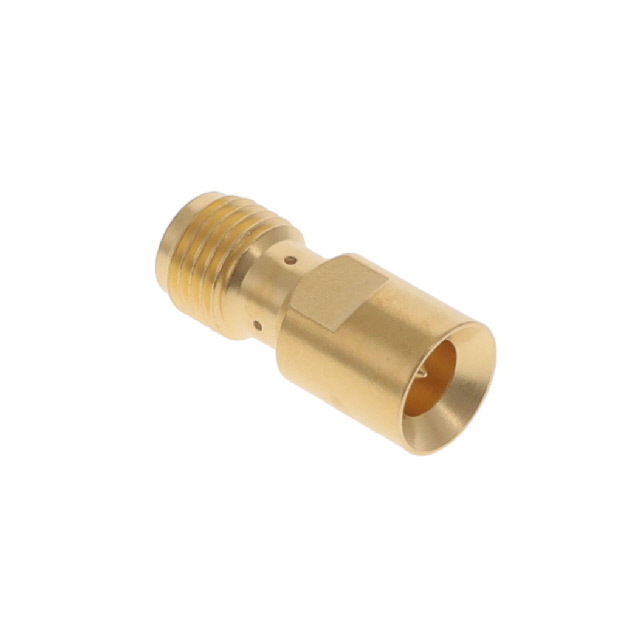

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Gold | -55 C | 125 °C | Beryllium Copper | Snap-On Threaded | 6000 MHz | Straight | Between Series | Jack to Jack | SMP Jack Female Socket | Female to Female | SMA to SMP | Female Socket SMA Jack | 50 Ohms | Free Hanging (In-Line) | Gold | |

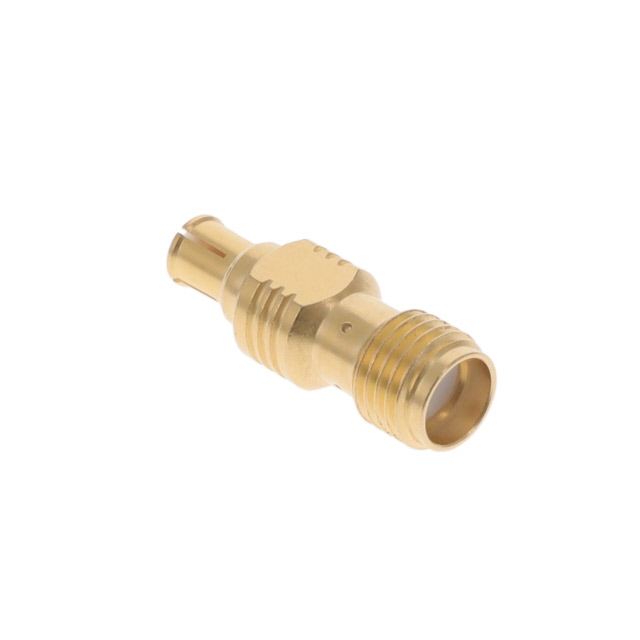

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Gold | -55 C | 125 °C | Beryllium Copper | 6000 MHz | Straight | Between Series | Jack to Jack | SMP Jack Female Socket | Female to Female | SMA to SMP | Female Socket SMA Jack | 50 Ohms | Free Hanging (In-Line) | Gold | ||

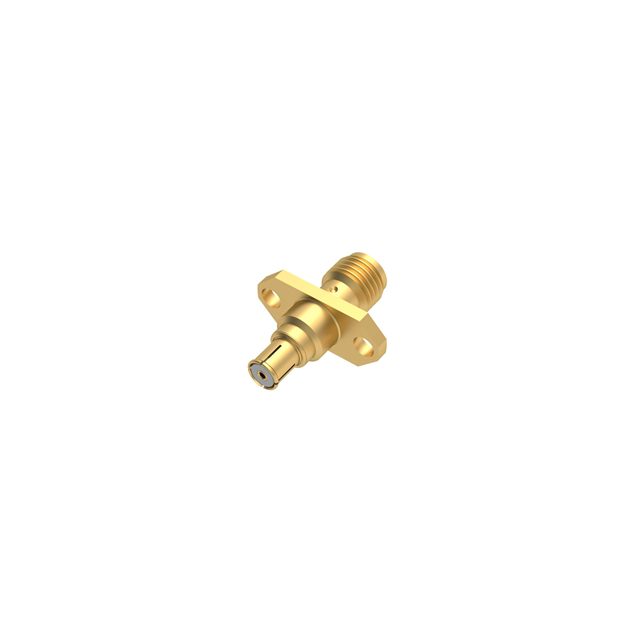

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Gold | -55 C | 125 °C | Beryllium Copper | Snap-On Threaded | 6000 MHz | Straight | Between Series | Jack to Jack | SMP Jack Female Socket | Female to Female | SMA to SMP | Female Socket SMA Jack | 50 Ohms | Panel Mount | Gold | Flange |
 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | Gold | -55 C | 125 °C | Beryllium Copper | Snap-On Threaded | 6000 MHz | Straight | Between Series | Plug to Jack | SMA to SMP | Female Socket SMA Jack | 50 Ohms | Free Hanging (In-Line) | Gold |
