BM-1 Series

Catalog

SWITCH SNAP ACTION SPDT 22A 125V

Part	Switch Function	Operating Position	Operating Position	Voltage Rating - AC	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Mounting Type	Actuator Type	Termination Style	Mechanical Life	Circuit	Pretravel	Pretravel	Operating Force [Max]	Operating Force [Min]	Current Rating (Amps)	Release Force	Operating Force

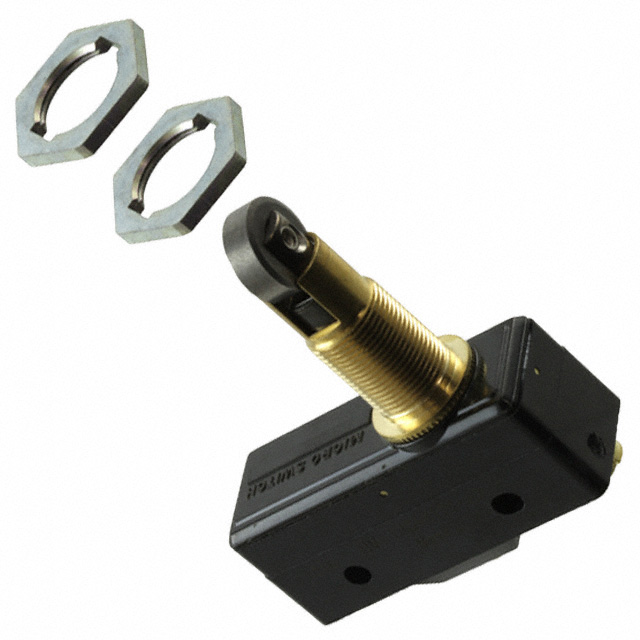

Honeywell Sensing and Productivity Solutions BM-1RQ18124-A2	On-Mom	49.6 mm	1.953 in	125 V	0.025 mm	0.001 in	121 °C	-55 °C	3.6 mm	0.141 in	Chassis Mount	Cross Roller Plunger	Screw Terminal	20000000 Cycles	SPDT	0.012 in	0.3 mm	283 gf	198 gf	22 A	113 gf
Honeywell Sensing and Productivity Solutions BM-1R369-A41	On-Mom	15.9 mm	0.625 in	125 V	0.025 mm	0.001 in	85 °C	-55 °C	0.13 mm	0.005 in	Chassis Mount	Round (Pin Plunger)	Screw Terminal	20000000 Cycles	SPDT	0.015 in	0.4 mm	482 gf	312 gf	22 A

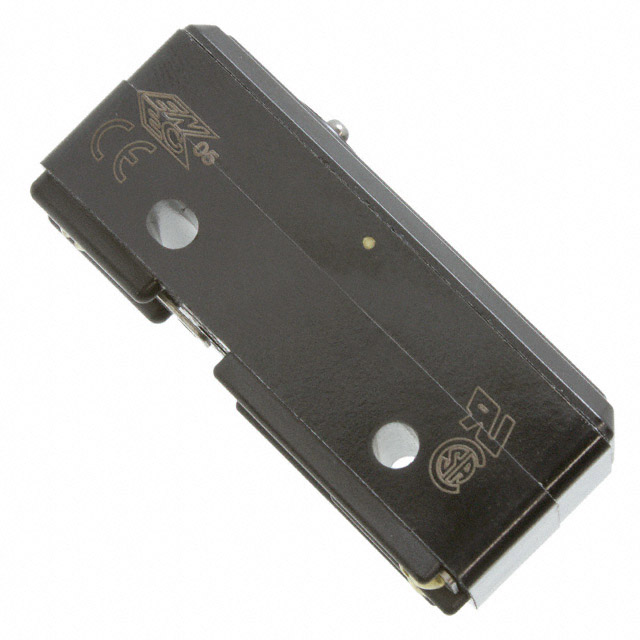

Honeywell Sensing and Productivity Solutions BM-1R373	On-Mom	15.9 mm	0.625 in	125 V	0.025 mm	0.001 in	85 °C	-55 °C	0.13 mm	0.005 in	Chassis Mount	Round (Pin Plunger)	Solder Lug	20000000 Cycles	SPDT	0.015 in	0.4 mm	283 gf	198 gf	22 A	113 gf

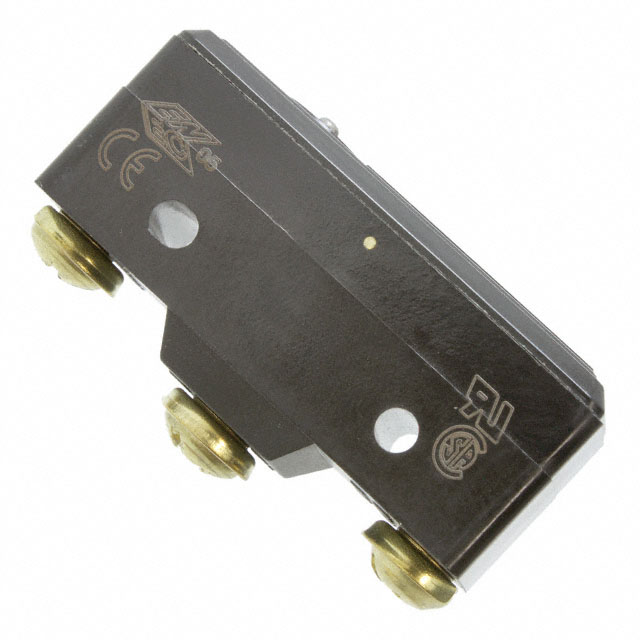

Honeywell Sensing and Productivity Solutions BM-1R-A4	On-Mom	15.9 mm	0.625 in	125 V	0.025 mm	0.001 in	85 °C	-55 °C	0.13 mm	0.005 in	Chassis Mount	Round (Pin Plunger)	Screw Terminal	20000000 Cycles	SPDT	0.015 in	0.4 mm			22 A	113 gf	198 gf
