TPS65270 Series

Catalog

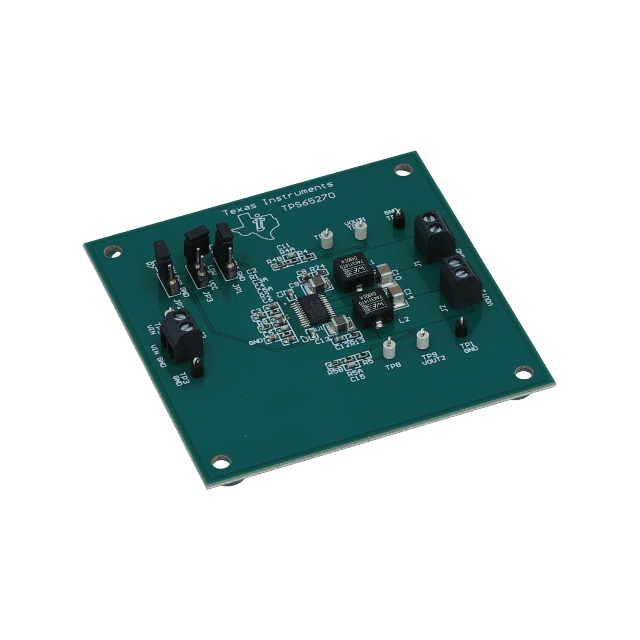

POWER MANAGEMENT IC DEVELOPMENT TOOLS TPS65270EVM

Part	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Contents	Main Purpose	Regulator Topology	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Output	Voltage - Output (Max) [Max]	Package / Case	Package / Case [custom]	Voltage - Output (Min/Fixed)	Mounting Type	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Output Type	Function	Voltage - Input (Max) [Max]	Supplier Device Package	Topology	Number of Outputs
Texas Instruments TPS65270EVM	Fully Populated	2	2 Non-Isolated Outputs Non-Isolated	Board(s)	TPS65270	4.5 V	16 V	2 A 3 A	Board(s)	DC/DC Step Down	Buck	300 kHz	1.4 MHz	1.2 V 1.8 V
Texas Instruments TPS65270PWPR								2 A 3 A				300 kHz	1.4 MHz		15 V	24-PowerTSSOP	0.173 in 4.4 mm	0.8 V	Surface Mount	4.5 V	85 C	-40 ¯C	Positive	Adjustable	Step-Down	18 V	24-HTSSOP	Buck	2
Texas Instruments TPS65270RGER								2 A 3 A				300 kHz	1.4 MHz		15 V	24-VFQFN Exposed Pad		0.8 V	Surface Mount	4.5 V	85 C	-40 ¯C	Positive	Adjustable	Step-Down	18 V	24-VQFN (4x4)	Buck	2
Texas Instruments TPS65270RGET								2 A 3 A				300 kHz	1.4 MHz		15 V	24-VFQFN Exposed Pad		0.8 V	Surface Mount	4.5 V	85 C	-40 ¯C	Positive	Adjustable	Step-Down	18 V	24-VQFN (4x4)	Buck	2
