48ASSP3 Series

Catalog

SLIDE SWITCH, PC PIN, SPDT, ON-OFF-ON, THROUGH HOLE, 48A SERIES, 5 A, 125 V

Part	Electrical Life	Switch Travel	Actuator Material	Switch Function	Contact Material	Voltage Rating - DC	Voltage Rating - AC	Circuit	Actuator Length [x]	Mounting Type	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Contact Timing	Actuator Type	Termination Style	Current Rating (Amps)	Features

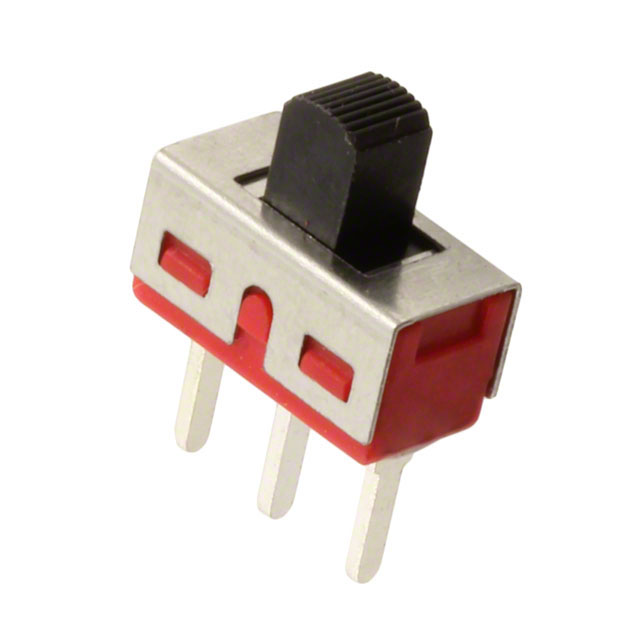

Grayhill Inc. 48ASSP3S1M2QBT	30000 Cycles	2.16 mm	Polyamide (PA) Nylon	On-Off-On	Copper Alloy	28 V	125 V	SPDT	5.08 mm	Through Hole	Silver	85 °C	-30 ░C	Not Specified	Standard	PC Pin	5 A	Epoxy Sealed Terminals
Grayhill Inc. 48ASSP3S6M7RBT	30000 Cycles	2.16 mm	Polyamide (PA) Nylon	On-Off-On	Copper Alloy	20 V	20 V	SPDT	12.32 mm	Right Angle Through Hole Vertical	Gold	85 °C	-30 ░C	Not Specified	Standard	PC Pin	0.4 VA	Epoxy Sealed Terminals
Grayhill Inc. 48ASSP3S3M2QBT	30000 Cycles	2.16 mm	Polyamide (PA) Nylon	On-Off-On	Copper Alloy	28 V	125 V	SPDT	9.4 mm	Through Hole	Silver	85 °C	-30 ░C	Not Specified	Standard	PC Pin	5 A	Epoxy Sealed Terminals
Grayhill Inc. 48ASSP3S1M6RBT	30000 Cycles	2.16 mm	Polyamide (PA) Nylon	On-Off-On	Copper Alloy	20 V	20 V	SPDT	5.08 mm	Right Angle Through Hole	Gold	85 °C	-30 ░C	Not Specified	Standard	PC Pin	0.4 VA	Epoxy Sealed Terminals
Grayhill Inc. 48ASSP3S1M6QBT	30000 Cycles	2.16 mm	Polyamide (PA) Nylon	On-Off-On	Copper Alloy	28 V	125 V	SPDT	5.08 mm	Right Angle Through Hole	Silver	85 °C	-30 ░C	Not Specified	Standard	PC Pin	5 A	Epoxy Sealed Terminals
Grayhill Inc. 48ASSP3S4M2RBT	30000 Cycles	2.16 mm	Polyamide (PA) Nylon	On-Off-On	Copper Alloy	20 V	20 V	SPDT	3.56 mm	Through Hole	Gold	85 °C	-30 ░C	Not Specified	Standard	PC Pin	0.4 VA	Epoxy Sealed Terminals
Grayhill Inc. 48ASSP3S3M7RBT	30000 Cycles	2.16 mm	Polyamide (PA) Nylon	On-Off-On	Copper Alloy	20 V	20 V	SPDT	9.4 mm	Right Angle Through Hole Vertical	Gold	85 °C	-30 ░C	Not Specified	Standard	PC Pin	0.4 VA	Epoxy Sealed Terminals
