039712 Series

Manufacturer: Molex

Catalog

TERM BLOCK PLUG 4POS 7.62MM

Part	Contact Mating Finish	Voltage - UL	Positions Per Level	Insulation Height	Insulation Height	Material Flammability Rating	Wire Strip Length	Mounting Type	Features	Pitch [x]	Pitch [x]	Plug Wire Entry	Number of Levels	Screw Size	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Torque - Screw	Torque - Screw	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Type	Termination Style	Number of Positions
Molex 0397120004	Tin	300 V	4	1.02 in	25.91 mm	UL94 V-0	7 mm	Free Hanging (In-Line)	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	90 °	1	M3	Bronze	-40 °C	105 ░C	0.56 Nm	5 Lb-In	30 AWG	12 AWG	Green	Plug Female Sockets	Screw	4
Molex 0397120007	Tin	300 V	7	1.02 in	25.91 mm	UL94 V-0	7 mm	Free Hanging (In-Line)	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	90 °	1	M3	Bronze	-40 °C	105 ░C	0.56 Nm	5 Lb-In	30 AWG	12 AWG	Green	Plug Female Sockets	Screw	7
Molex 0397120003	Tin	300 V	3	1.02 in	25.91 mm	UL94 V-0	7 mm	Free Hanging (In-Line)	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	90 °	1	M3	Bronze	-40 °C	105 ░C	0.56 Nm	5 Lb-In	30 AWG	12 AWG	Green	Plug Female Sockets	Screw
Molex 0397120002	Tin	300 V	2	1.02 in	25.91 mm	UL94 V-0	7 mm	Free Hanging (In-Line)	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	90 °	1	M3	Bronze	-40 °C	105 ░C	0.56 Nm	5 Lb-In	30 AWG	12 AWG	Green	Plug Female Sockets	Screw	2
Molex 0397120009	Tin	300 V	9	1.02 in	25.91 mm	UL94 V-0	7 mm	Free Hanging (In-Line)	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	90 °	1	M3	Bronze	-40 °C	105 ░C	0.56 Nm	5 Lb-In	30 AWG	12 AWG	Green	Plug Female Sockets	Screw	9

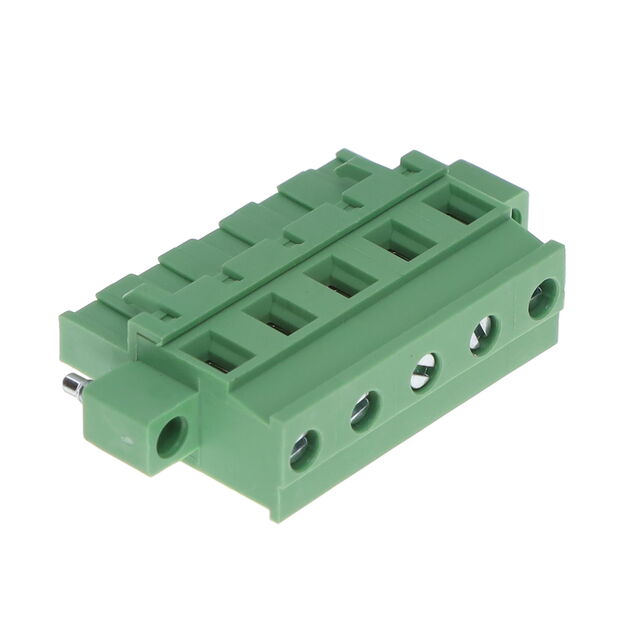

Molex 0397120005	Tin	300 V	5	1.02 in	25.91 mm	UL94 V-0	7 mm	Free Hanging (In-Line)	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	90 °	1	M3	Bronze	-40 °C	105 ░C	0.56 Nm	5 Lb-In	30 AWG	12 AWG	Green	Plug Female Sockets	Screw
Molex 0397120012	Tin	300 V	12	1.02 in	25.91 mm	UL94 V-0	7 mm	Free Hanging (In-Line)	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	90 °	1	M3	Bronze	-40 °C	105 ░C	0.56 Nm	5 Lb-In	30 AWG	12 AWG	Green	Plug Female Sockets	Screw	12
Molex 0397120010	Tin	300 V	10	1.02 in	25.91 mm	UL94 V-0	7 mm	Free Hanging (In-Line)	Mating Flange Retention Latches (Wire Side)	0.3 in	7.62 mm	90 °	1	M3	Bronze	-40 °C	105 ░C	0.56 Nm	5 Lb-In	30 AWG	12 AWG	Green	Plug Female Sockets	Screw	10
