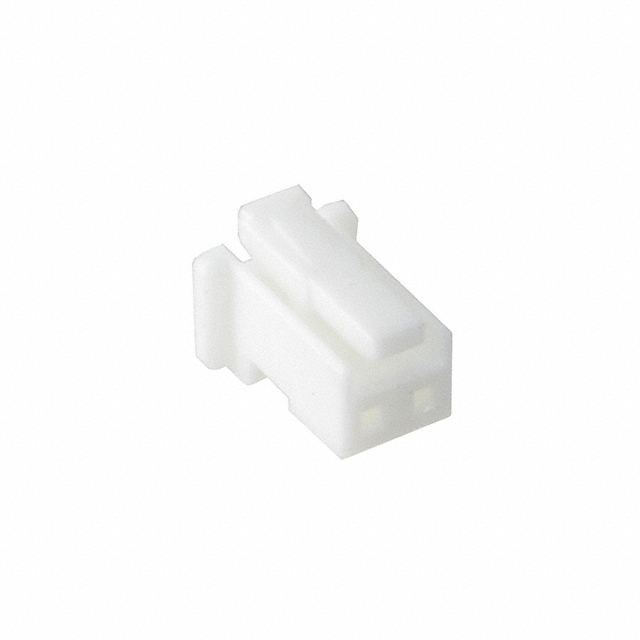

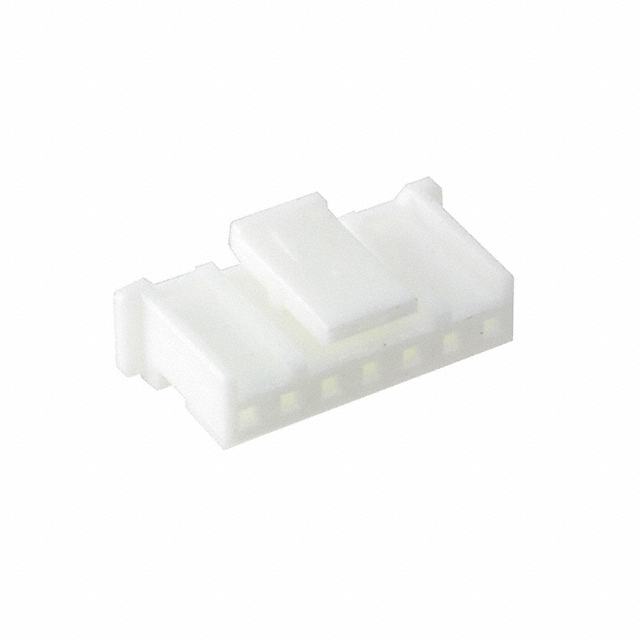

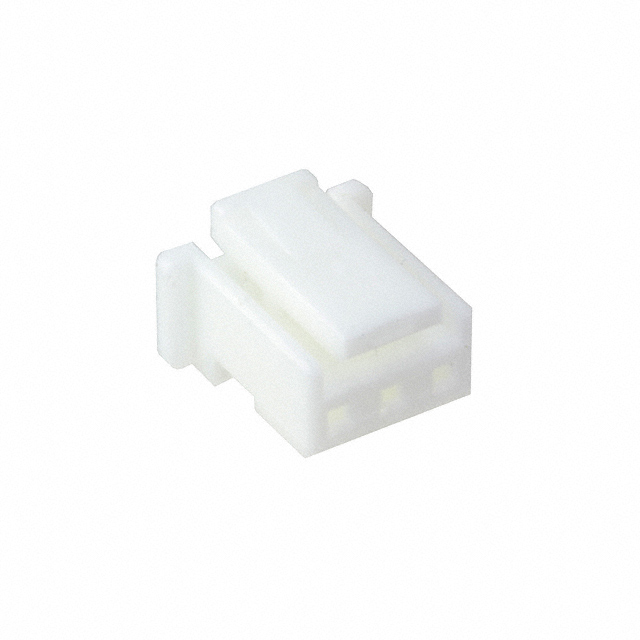

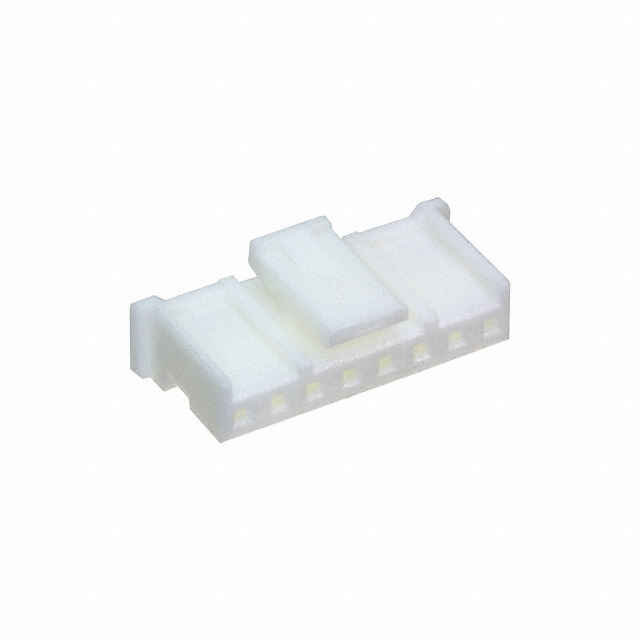

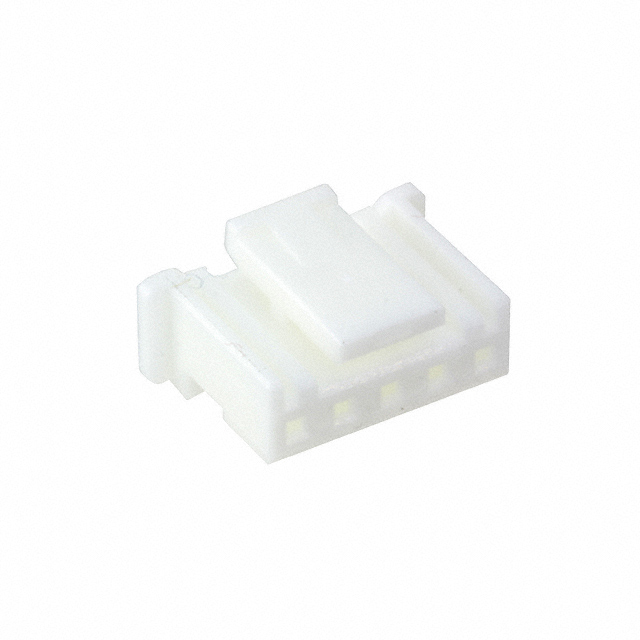

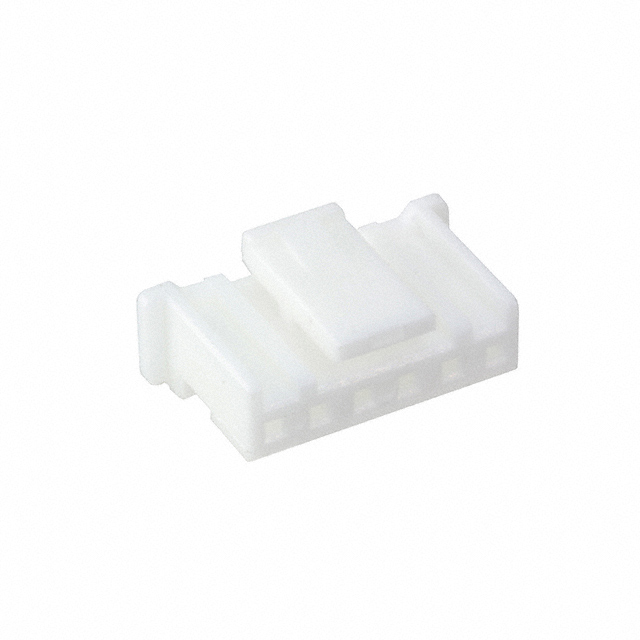

2CH-H Series
Manufacturer: Adam Tech
Beta
⌘K
CONN HOUSING RCP 6 POS 2MM CRIMP ST CABLE MOUNT NATURAL
| Part | Note | Fastening Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Connector Type | Contact Type | Pitch [x] | Pitch [x] | Color | Mounting Type | Insulation Material | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Contacts Not Included | Friction Lock | 6 | 85 °C | -25 °C | 1 | Receptacle | Female Socket | 0.079 in | 2 mm | White | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |
 Adam Tech | Contacts Not Included | Friction Lock | 85 °C | -25 °C | 1 | Receptacle | Female Socket | 0.079 in | 2 mm | White | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp | |
 Adam Tech | Contacts Not Included | Friction Lock | 2 | 85 °C | -25 °C | 1 | Receptacle | Female Socket | 0.079 in | 2 mm | White | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |
 Adam Tech | Contacts Not Included | Friction Lock | 5 | 85 °C | -25 °C | 1 | Receptacle | Female Socket | 0.079 in | 2 mm | White | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |
 Adam Tech | Contacts Not Included | Friction Lock | 8 | 85 °C | -25 °C | 1 | Receptacle | Female Socket | 0.079 in | 2 mm | White | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |
 Adam Tech | Contacts Not Included | Friction Lock | 7 | 85 °C | -25 °C | 1 | Receptacle | Female Socket | 0.079 in | 2 mm | White | Free Hanging (In-Line) | Nylon 6/6 Polyamide (PA66) | Crimp |
