NPTC261 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

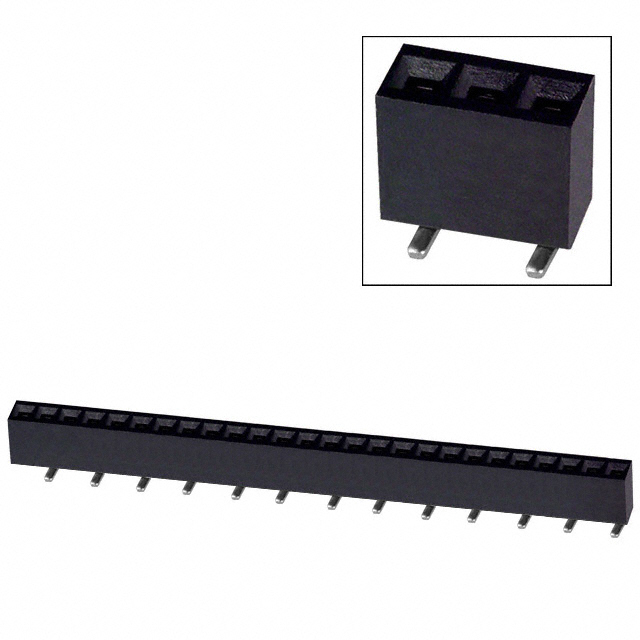

CONN HDR 26POS 0.1 TIN SMD
| Part | Contact Shape | Insulation Material | Contact Material | Contact Finish - Post | Material Flammability Rating | Contact Type | Number of Positions Loaded | Termination | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Connector Type | Number of Positions | Fastening Type | Voltage Rating | Insulation Color | Number of Rows | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Nylon 6T Polyamide (PA6T) | Phosphor Bronze | Tin | UL94 V-0 | Female Socket | All | Solder | 3 A | -40 C | 105 ░C | Surface Mount | Header Top or Bottom Entry | 26 | Push-Pull | 250 V | Black | 1 | 0.1 " | 2.54 mm | 0.28 in | 7.1 mm |
