171-015 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB PLUG 15POS PNL MNT
| Part | Dielectric Material | Wire Gauge [Max] | Wire Gauge [Min] | Color | Contact Form | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Positions | Mounting Type | Connector Style | Contact Type | Contact Finish Thickness | Current Rating (Amps) | Contact Finish | Material Flammability Rating | Number of Rows [custom] | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Flange Feature | Shell Size, Connector Layout | Termination | Features | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

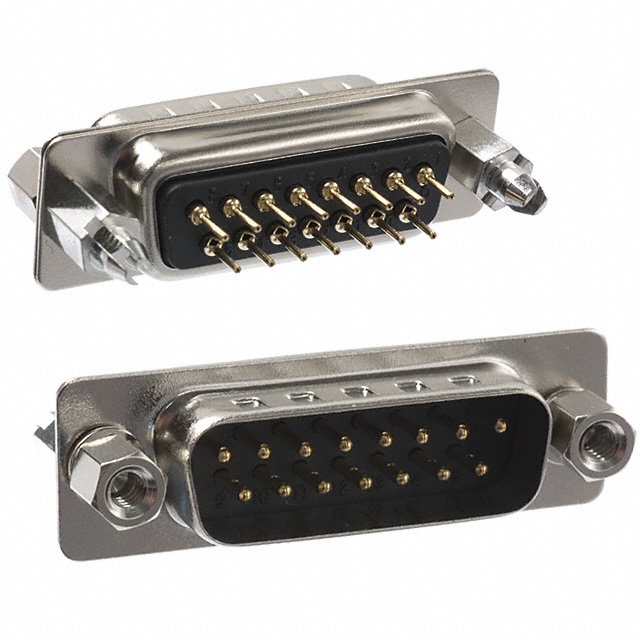

 NorComp Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 28 AWG | 19.5 AWG | Black | Stamped | Copper Alloy | 100 °C | -50 °C | Plug Male Pins | 15 | Panel Mount | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | Yellow Chromate Plated Zinc | Steel | Cable Side (4-40) | 2 | |||

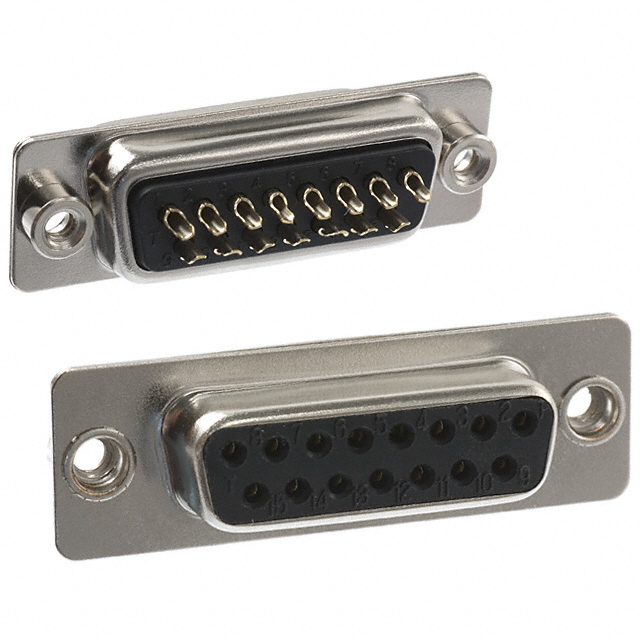

NorComp Inc. | Polybutylene Terephthalate (PBT) | 28 AWG | 19.5 AWG | Black | Stamped | 100 °C | -50 °C | Receptacle Female Sockets | 15 | Panel Mount | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | 4-40 | 2 | ||||||
NorComp Inc. | Polybutylene Terephthalate (PBT) | 28 AWG | 19.5 AWG | Black | Stamped | 100 °C | -50 °C | Receptacle Female Sockets | 15 | Panel Mount | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | Housing/Shell (Unthreaded) | 2 | ||||||

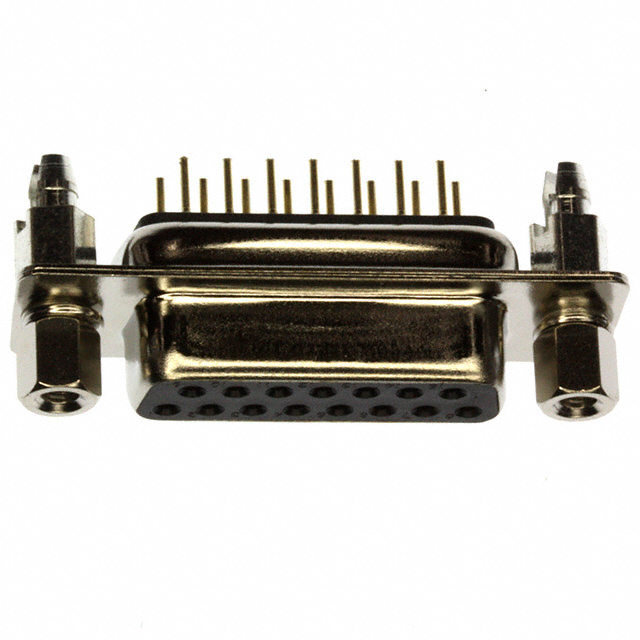

NorComp Inc. | Polybutylene Terephthalate (PBT) | Black | Stamped | 100 °C | -50 °C | Receptacle Female Sockets | 15 | Panel Mount Through Hole | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | Board Side (4-40) Mating Side Female Screwlock (4-40) | 2 | Solder | Board Lock | ||||||
NorComp Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 28 AWG | 19.5 AWG | Black | Stamped | 100 °C | -50 °C | Receptacle Female Sockets | 15 | Panel Mount | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | Yellow Chromate Plated Zinc | Steel | Cable Side (4-40) | 2 | ||||
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | Stamped | Brass | 100 °C | -50 °C | Receptacle Female Sockets | 15 | Panel Mount Through Hole | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | Board Side (4-40) Mating Side Female Screwlock (4-40) | 2 | Solder | Board Lock | Nickel Plated Steel | ||||

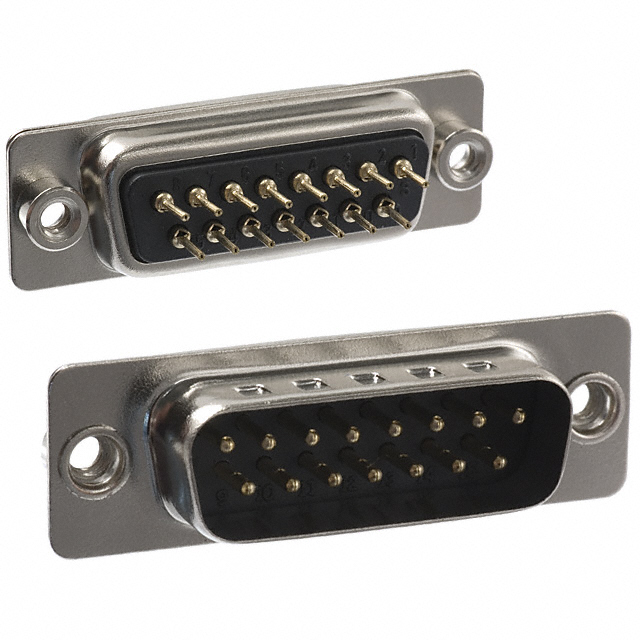

 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | Stamped | Brass | 100 °C | -50 °C | Plug Male Pins | 15 | Panel Mount Through Hole | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | Board Side (4-40) | 2 | Solder | Grounding Indents | Nickel Plated Steel | ||||
 NorComp Inc. | Nylon 9T Polyamide (PA9T) | Black | Stamped | Brass | 100 °C | -50 °C | Plug Male Pins | 15 | Panel Mount Through Hole | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | Board Side (4-40) Mating Side Female Screwlock (4-40) | 2 | Solder | Board Lock Grounding Indents | Nickel Plated Steel | ||||
NorComp Inc. | Polybutylene Terephthalate (PBT) | Black | Stamped | 100 °C | -50 °C | Receptacle Female Sockets | 15 | Panel Mount Through Hole | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | Housing/Shell (Unthreaded) | 2 | Solder | |||||||
 NorComp Inc. | Polybutylene Terephthalate (PBT) Glass Filled | 28 AWG | 19.5 AWG | Black | Stamped | 100 °C | -50 °C | Receptacle Female Sockets | 15 | Panel Mount | D-Sub | Signal | Flash | 5 A | Gold | UL94 V-0 | 2 | Cable Side (4-40) | 2 | Nickel Plated Steel |
