206832 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 14POS 3MM

Part	Mounting Type	Connector Type	Fastening Type	Style	Number of Positions	Insulation Color	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Contact Material	Current Rating (Amps)	Voltage Rating	Material Flammability Rating	Contact Finish - Post	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Applications	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)
Molex 2068321401	Through Hole	Header	Locking Ramp	Board to Cable/Wire	14	Black	Male Pin	-40 °C	105 ░C	Board Guide Glow Wire Compliant	9.91 mm	0.39 in	3 mm	0.118 in	2	Solder	3.18 mm	0.125 in	Shrouded - 4 Wall	Copper Alloy	12.5 A	600 VAC	UL94 V-0	Tin	Square	0.118 in	3 mm	All	Automotive General Purpose Medical Telecommunications

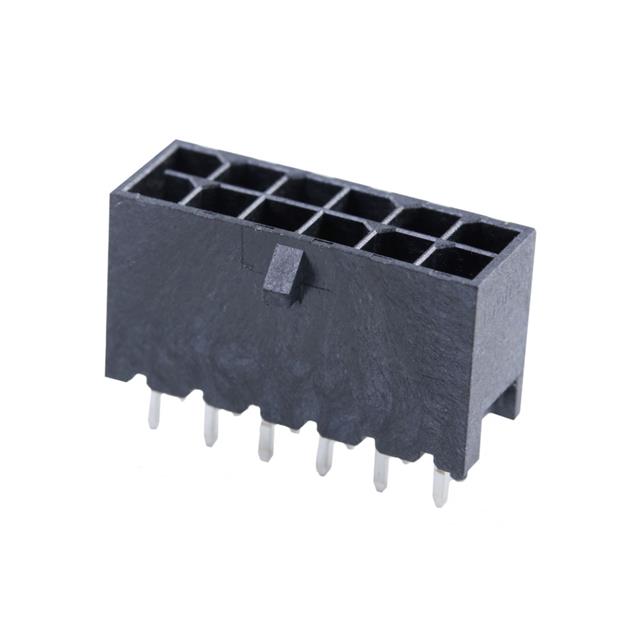

Molex 2068321223	Through Hole	Header	Locking Ramp	Board to Cable/Wire	12	Black	Male Pin	-40 °C	105 ░C	Board Guide Glow Wire Compliant	9.91 mm	0.39 in	3 mm	0.118 in	2	Solder	3.18 mm	0.125 in	Shrouded - 4 Wall	Copper Alloy	12.5 A	600 VAC	UL94 V-0	Tin	Square	0.118 in	3 mm	All		Gold	30 Áin	0.76 Ám

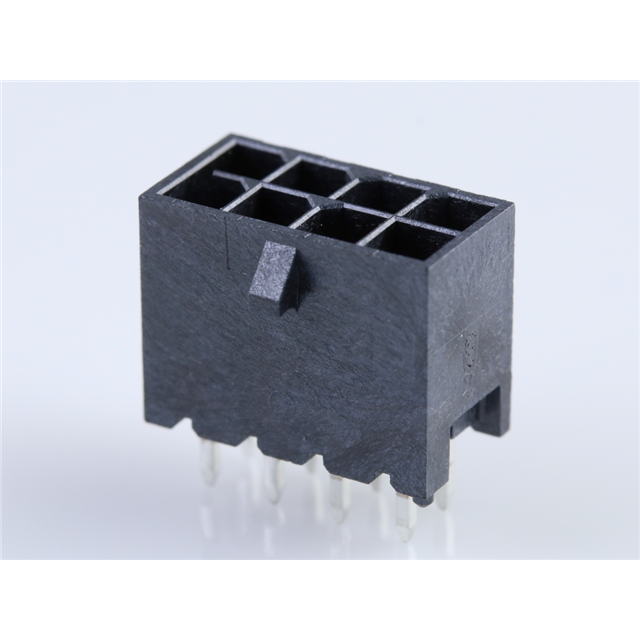

Molex 2068320822	Through Hole	Header	Locking Ramp	Board to Cable/Wire	8	Black	Male Pin	-40 °C	105 ░C	Board Guide Glow Wire Compliant	9.91 mm	0.39 in	3 mm	0.118 in	2	Solder	3.18 mm	0.125 in	Shrouded - 4 Wall	Copper Alloy		600 VAC	UL94 V-0	Tin	Square	0.118 in	3 mm	All		Gold	15 µin	0.38 µm	Varies by Wire Gauge
Molex 2068322201	Through Hole	Header	Locking Ramp	Board to Cable/Wire	22 positions	Black	Male Pin	-40 °C	105 ░C	Board Guide Glow Wire Compliant	9.91 mm	0.39 in	3 mm	0.118 in	2	Solder	3.18 mm	0.125 in	Shrouded - 4 Wall	Copper Alloy	12.5 A	600 VAC	UL94 V-0	Tin	Square	0.118 in	3 mm	All	Automotive General Purpose Medical Telecommunications
Molex 2068322223	Through Hole	Header	Locking Ramp	Board to Cable/Wire	22 positions	Black	Male Pin	-40 °C	105 ░C	Board Guide Glow Wire Compliant	9.91 mm	0.39 in	3 mm	0.118 in	2	Solder	3.18 mm	0.125 in	Shrouded - 4 Wall	Copper Alloy	12.5 A	600 VAC	UL94 V-0	Tin	Square	0.118 in	3 mm	All		Gold	30 Áin	0.76 Ám
Molex 2068320803

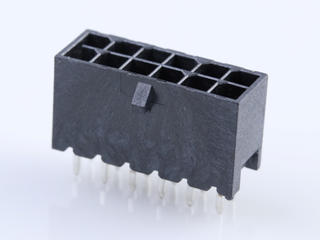

Molex 2068321203	Through Hole	Header	Locking Ramp	Board to Cable/Wire	12	Black	Male Pin	-40 °C	105 ░C	Board Guide Glow Wire Compliant	9.91 mm	0.39 in	3 mm	0.118 in	2	Solder	3.18 mm	0.125 in	Shrouded - 4 Wall	Copper Alloy	12 A	600 VAC	UL94 V-0	Tin	Square	0.118 in	3 mm	All		Gold	30 Áin	0.76 Ám
Molex 2068321001	Through Hole	Header	Locking Ramp	Board to Cable/Wire	10	Black	Male Pin	-40 °C	105 ░C	Board Guide Glow Wire Compliant	9.91 mm	0.39 in	3 mm	0.118 in	2	Solder	3.18 mm	0.125 in	Shrouded - 4 Wall	Copper Alloy	12.5 A	600 VAC	UL94 V-0	Tin	Square	0.118 in	3 mm	All	Automotive General Purpose Medical Telecommunications
Molex 2068320622	Through Hole	Header	Locking Ramp	Board to Cable/Wire	6	Black	Male Pin	-40 °C	105 ░C	Board Guide Glow Wire Compliant	9.91 mm	0.39 in	3 mm	0.118 in	2	Solder	3.18 mm	0.125 in	Shrouded - 4 Wall	Copper Alloy		600 VAC	UL94 V-0	Tin	Square	0.118 in	3 mm	All		Gold	15 µin	0.38 µm	Varies by Wire Gauge
Molex 2068321003	Through Hole	Header	Locking Ramp	Board to Cable/Wire	10	Black	Male Pin	-40 °C	105 ░C	Board Guide Glow Wire Compliant	9.91 mm	0.39 in	3 mm	0.118 in	2	Solder	3.18 mm	0.125 in	Shrouded - 4 Wall	Copper Alloy	12 A	600 VAC	UL94 V-0	Tin	Square	0.118 in	3 mm	All		Gold	30 Áin	0.76 Ám
