0553-3 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Termination	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter	Mounting Hole Diameter	Tail Type	Socket Depth [z]	Socket Depth [z]	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0553-3-15-15-21-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Gold	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail	0.154 in	3.91 mm	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm
Mill-Max Manufacturing Corp. 0553-3-15-80-21-84-10-0	-55 C	125 °C	2.54 µm	100 µin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Tin	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail	0.154 in	3.91 mm	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm
Mill-Max Manufacturing Corp. 0553-3-15-01-11-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Gold	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail			Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	0.266 in	6.76 mm
Mill-Max Manufacturing Corp. 0553-3-15-80-11-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Gold	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail	0.154 in	3.91 mm	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm

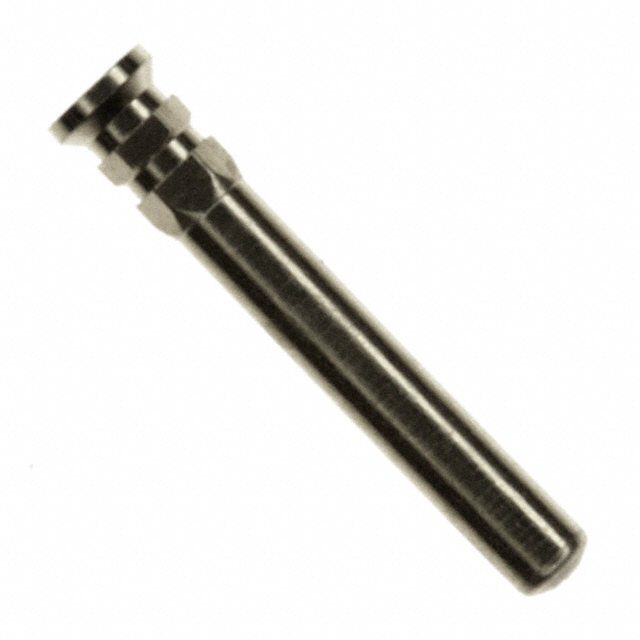

Mill-Max Manufacturing Corp. 0553-3-15-15-11-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Gold	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail			Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm	0.266 in	6.76 mm
Mill-Max Manufacturing Corp. 0553-3-15-01-21-02-10-0	-55 C	125 °C	2.54 µm	100 µin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Tin-Lead	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail			Beryllium Copper	0.022 in	0.38 mm	0.015 "		0.266 in	6.76 mm	0.56 mm
Mill-Max Manufacturing Corp. 0553-3-15-80-21-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Gold	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail	0.154 in	3.91 mm	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm
Mill-Max Manufacturing Corp. 0553-3-15-01-21-14-10-0	-55 C	125 °C	0.25 Ám	10 Áin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Gold	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail			Beryllium Copper	0.022 in	0.38 mm	0.015 "		0.266 in	6.76 mm	0.56 mm
Mill-Max Manufacturing Corp. 0553-3-15-80-11-84-10-0	-55 C	125 °C	2.54 µm	100 µin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Tin	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail	0.154 in	3.91 mm	Beryllium Copper	0.02 in	0.38 mm	0.015 "	0.51 mm

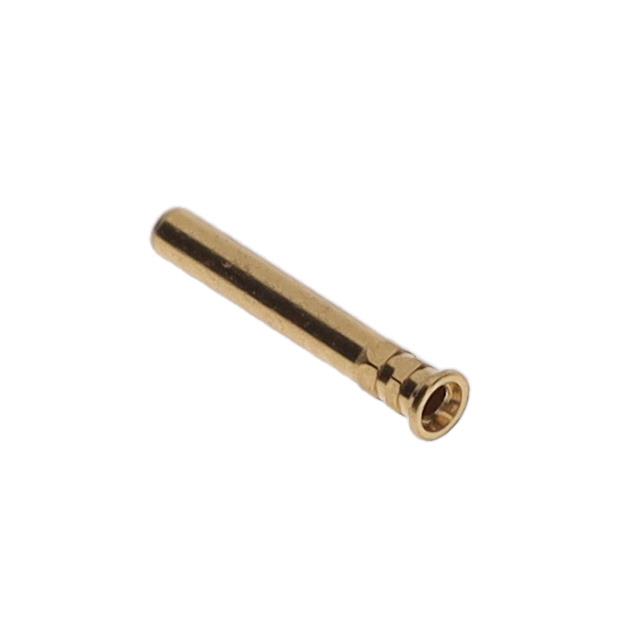

Mill-Max Manufacturing Corp. 0553-3-15-15-21-27-10-0	-55 C	125 °C	0.76 Ám	30 Áin	1.4 mm	0.055 in	Hex Press-Fit	0.031 in	0.79 mm	Gold	0.282 in	7.16 mm	0.041 in	1.04 mm	No Tail			Beryllium Copper	0.022 in	0.38 mm	0.015 "		0.266 in	6.76 mm	0.56 mm
