GBC30S Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

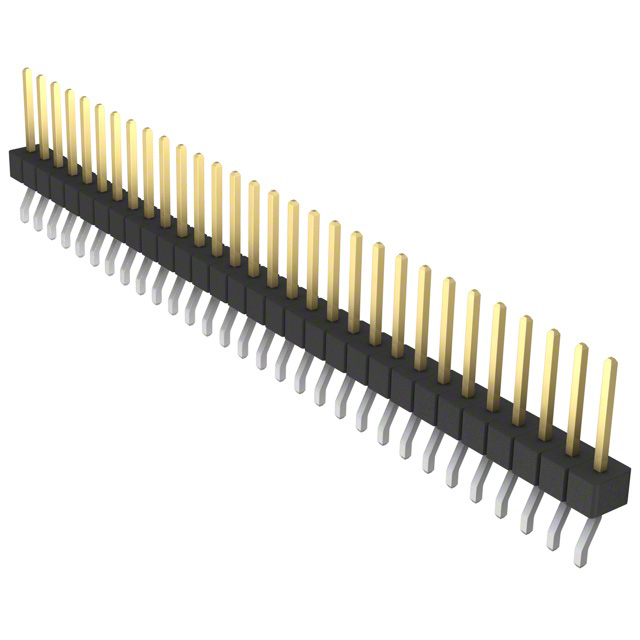

CONN HEADER SMD R/A 30POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions Loaded | Mounting Type | Insulation Height | Insulation Height | Style | Contact Type | Contact Finish - Post | Insulation Color | Termination | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Connector Type | Fastening Type | Insulation Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Current Rating (Amps) | Shrouding | Number of Rows | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 2.54 µm | 100 µin | All | Right Angle Surface Mount | 3.56 mm | 0.14 in | Board to Board Cable | Male Pin | Tin | Black | Solder | 8.08 mm | 0.318 in | UL94 V-0 | Gold | 0.1 " | 2.54 mm | Header Breakaway | Push-Pull | Nylon 9T Polyamide (PA9T) | Phosphor Bronze | 150 °C | -65 ░C | 0.25 µm | 10 µin | 30 | 3 A | Unshrouded | 1 | Square |
 Sullins Connector Solutions | 2.54 µm | 100 µin | All | Surface Mount | 2.54 mm | 0.1 in | Board to Board Cable | Male Pin | Tin | Black | Solder | 8.08 mm | 0.318 in | UL94 V-0 | Gold | 0.1 " | 2.54 mm | Header Breakaway | Push-Pull | Nylon 9T Polyamide (PA9T) | Phosphor Bronze | 150 °C | -65 ░C | 0.25 µm | 10 µin | 30 | 3 A | Unshrouded | 1 | Square |
