PSM03S Series

Catalog

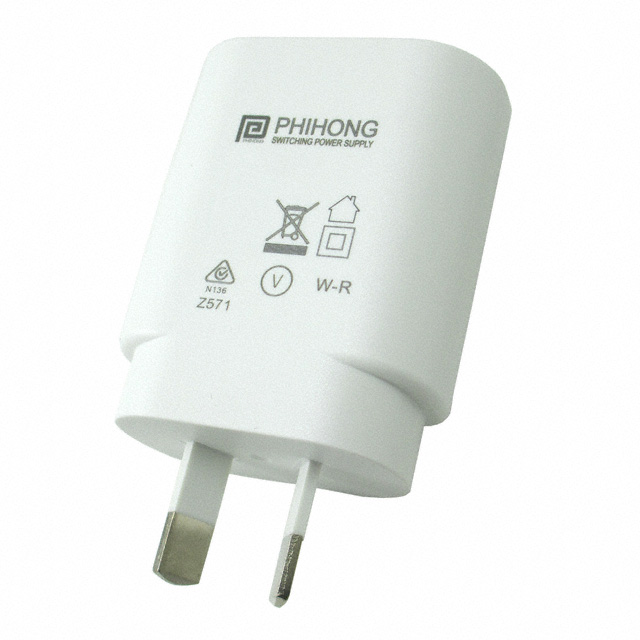

AC/DC WALL MOUNT ADAPTER 5V 2.8W

Part	Weight [custom]	Weight [custom]	Input Connector	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Output Connector	Efficiency	Voltage - Output	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Standard Number	Form	Current - Output (Max) [Max]	Region Utilized	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	No Load Power Consumption
Phihong USA PSM03S-050Q-3W-R	79.83 g	0.176 lb	AS 3112	Fixed Blade	40 °C	-10 °C	ITE (Commercial)	USB A Receptacle	Level V	5 V	AS/NZS	264 VAC	90 VAC	2.8 W	60950-1 62368-1	Wall Mount	550 mA	Australia	25 mm	1.69 "	43 mm	0.98 "	2.09 in	53.2 mm	150 mW
Phihong USA PSM03S-050Q	79.83 g	0.176 lb	AS 3112	Fixed Blade	40 °C	-10 °C	ITE (Commercial)	USB A Receptacle	Level V	5 V	C-Tick	264 VAC	90 VAC	2.8 W		Wall Mount	550 mA	Australia	25 mm	1.69 "	43 mm	0.98 "	2.09 in	53.2 mm	150 mW
