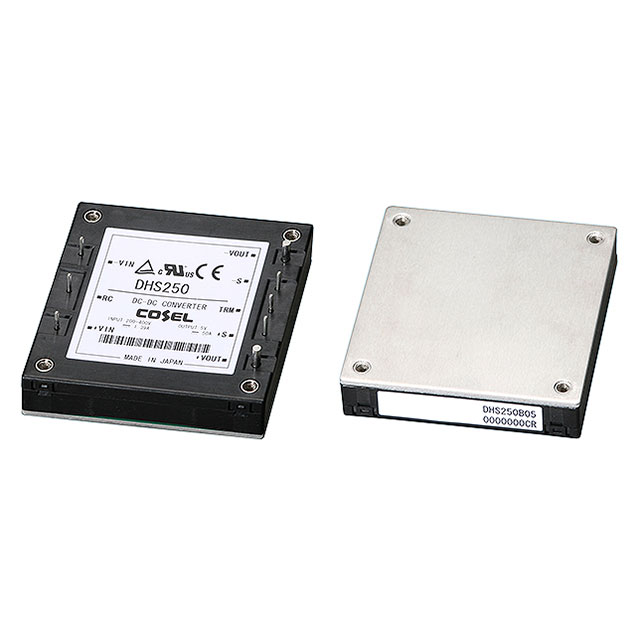

DHS250 Series

Isolated DC/DC Converters - Through Hole 250W 48V 5.2A Through Hole

Manufacturer: Cosel USA, Inc.

Catalog

Isolated DC/DC Converters - Through Hole 250W 48V 5.2A Through Hole

Catalog

Isolated DC/DC Converters - Through Hole 250W 48V 5.2A Through Hole

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Efficiency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Current - Output (Max) [Max]	Package / Case	Voltage - Isolation	Features
Cosel USA, Inc. DHS250B24-T	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	88 %	24 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	252 W	10.5 A	8-DIP Module
Cosel USA, Inc. DHS250B28-T	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	88 %	28 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	252 W	9 A	8-DIP Module
Cosel USA, Inc. DHS250B48	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	89 %	48 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in		5.2 A	8-DIP Module	3000 V	OCP OTP OVP Remote On/Off
Cosel USA, Inc. DHS250B15	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	88 %	15 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	248 W	16.5 A	8-DIP Module
Cosel USA, Inc. DHS250B12-T	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	88 %	12 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	252 W	21 A	8-DIP Module
Cosel USA, Inc. DHS250B24	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	88 %	24 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in		10.5 A	8-DIP Module	3000 V	OCP OTP OVP Remote On/Off
Cosel USA, Inc. DHS250B15-T	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	88 %	15 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	248 W	16.5 A	8-DIP Module
Cosel USA, Inc. DHS250B07-T	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	88 %	7.5 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	248 W	33 A	8-DIP Module
Cosel USA, Inc. DHS250B03	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	88 %	3.3 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	165 W	50 A	8-DIP Module
Cosel USA, Inc. DHS250B07	-40 °C	100 °C	Isolated Module	Through Hole	1	ITE (Commercial)	200 V	400 VDC	88 %	7.5 V	58.4 mm	12.7 mm	2.3 in	61 mm	2.4 in	0.5 in	248 W	33 A	8-DIP Module
