EYW09238012 Series
Manufacturer: YS TECH USA
Beta
⌘K

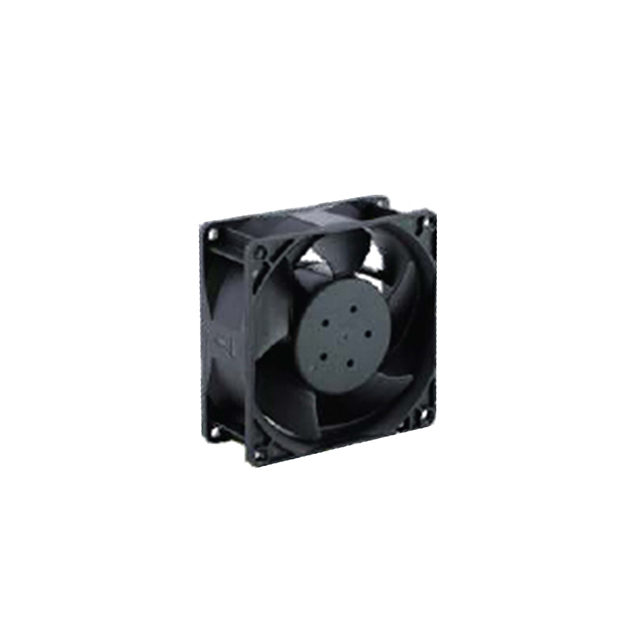

FAN AXIAL 92X38MM 12VDC WIRE
| Part | Current Rating | Material - Frame | Voltage Range (Min) | Voltage Range (Max) | Material - Blade | Lifetime | Static Pressure | Width | Air Flow | Voltage - Rated | Fan Type | Bearing Type | Size / Dimension Length | Size / Dimension Shape | Size / Dimension Height | Power (Watts) | Noise | Termination Leads Count | Termination Type | Termination | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | 4.4 A | Polybutylene Terephthalate (PBT) | 7 V | 13.2 VDC | PBT Polybutylene Terephthalate | 65000 Hrs | 3.11 in H2O | 38 mm | 184.4 CFM | 12 VAC | Tubeaxial | Ball | 92 mm | Square | 92 mm | 52.8 W | 67.5 dB | 2 leads | Wire Leads | 2 Wire Leads | 12500 RPM |
