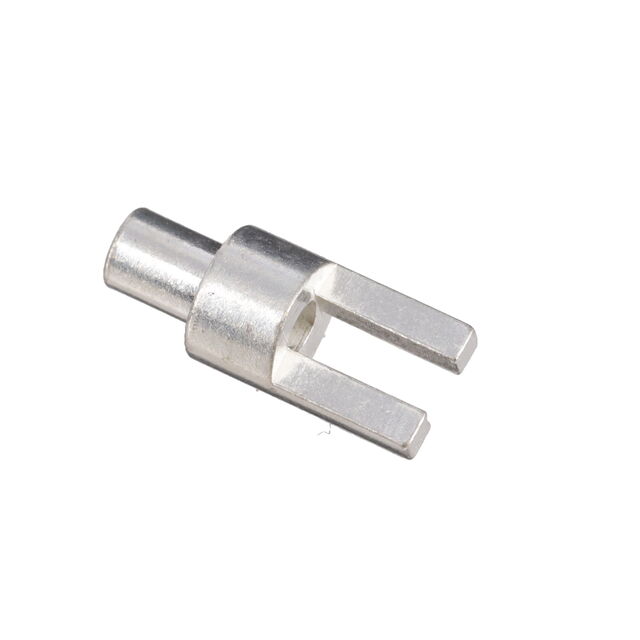

2807-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Style | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Insulation | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Termination | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Board Thickness [custom] | Board Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2.84 mm | 0.112 " | 4.78 mm | 0.188 in | Single End Slotted | Brass Alloy | 3.56 mm | 0.14 " | Tin | 200 Áin | 5.08 Ám | Through Hole | Non-Insulated | 4.78 mm | 0.188 in | 0.328 in | 8.33 mm | Knurled Swage | PC Pin | 0.116 in | 2.95 mm | 11.89 mm | 0.468 in | 0.094 in | 2.39 mm |
 Mill-Max Manufacturing Corp. | 2.84 mm | 0.112 " | 4.78 mm | 0.188 in | Single End Slotted | Brass Alloy | 3.56 mm | 0.14 " | Tin-Lead | 200 Áin | 5.08 Ám | Through Hole | Non-Insulated | 4.78 mm | 0.188 in | 0.328 in | 8.33 mm | Knurled Swage | PC Pin | 0.116 in | 2.95 mm | 11.89 mm | 0.468 in | 0.094 in | 2.39 mm |
