T50F Series

Catalog

SPIRAL WRAPPING ROHS COMPLIANT: YES

Part	Color	Type	Material	Material Flammability Rating	Length	Length	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Type Attributes	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Wall Thickness	Wall Thickness	Abrasion Protection	Heat Protection	Environment Protection
Panduit Corp T50F-X	Natural	Spiral Wrap	Polyethylene (PE)	UL94 HB	3.05 m	10 ft	12.7 mm	0.5 in	-40 C	50 °C	Harness	4 in	101.6 mm	1.52 mm	0.06 in	Abrasion Resistant

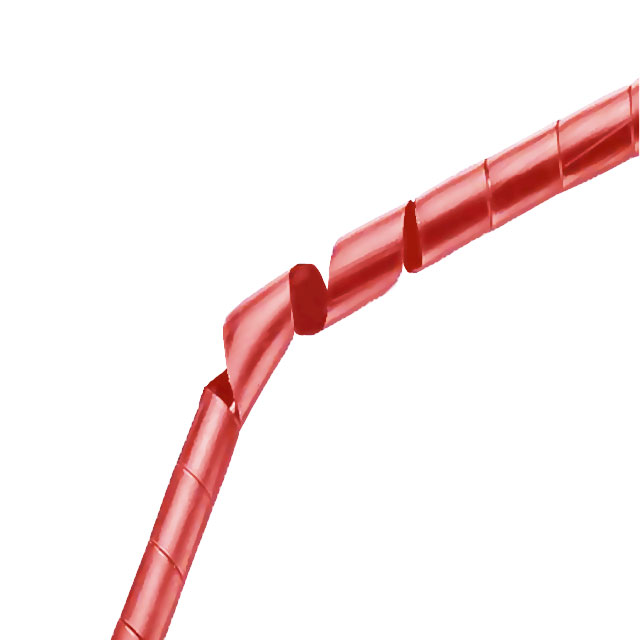

Panduit Corp T50F-C2	Red	Spiral Wrap	Polyethylene (PE)	UL94 HB	30.48 m	100 '	12.7 mm	0.5 in	-40 C	50 °C	Harness	4 in	101.6 mm	1.52 mm	0.06 in	Abrasion Resistant
Panduit Corp T50F-10J
Panduit Corp T50FR-TLY	Natural White	Spiral Wrap	Polyethylene (PE)	UL94 V-0	76.2 m	250 ft	12.7 mm	0.5 in	-20 ░C	50 °C	Harness	4 in	101.6 mm	1.52 mm	0.06 in	Abrasion Resistant	Flame Retardant
Panduit Corp T50F-C1	Brown	Spiral Wrap	Polyethylene (PE)	UL94 HB	30.48 m	100 '	12.7 mm	0.5 in	-40 C	50 °C	Harness	4 in	101.6 mm	1.52 mm	0.06 in	Abrasion Resistant
Panduit Corp T50F-TL	Natural	Spiral Wrap	Polyethylene (PE)	UL94 HB	76.2 m	250 ft	12.7 mm	0.5 in	-40 C	50 °C	Harness	4 in	101.6 mm	1.52 mm	0.06 in	Abrasion Resistant

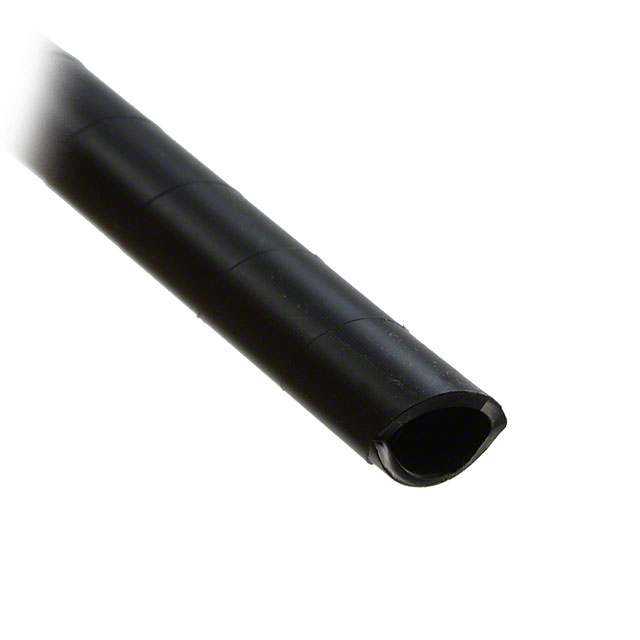

Panduit Corp T50F-C0	Black	Spiral Wrap	Polyethylene (PE)	UL94 HB	30.48 m	100 '	12.7 mm	0.5 in	-40 C	50 °C	Harness	4 in	101.6 mm	1.52 mm	0.06 in	Abrasion Resistant		Weather Resistant

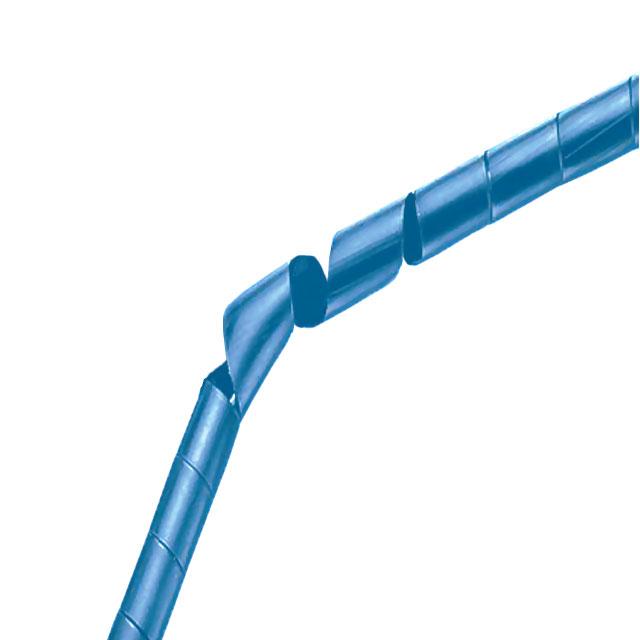

Panduit Corp T50F-C6	Blue	Spiral Wrap	Polyethylene (PE)	UL94 HB	30.48 m	100 '	12.7 mm	0.5 in	-40 C	50 °C	Harness	4 in	101.6 mm	1.52 mm	0.06 in	Abrasion Resistant
Panduit Corp T50F-C10	White	Spiral Wrap	Polyethylene (PE)	UL94 HB	30.48 m	100 '	12.7 mm	0.5 in	-40 C	50 °C	Harness	4 in	101.6 mm	1.52 mm	0.06 in	Abrasion Resistant

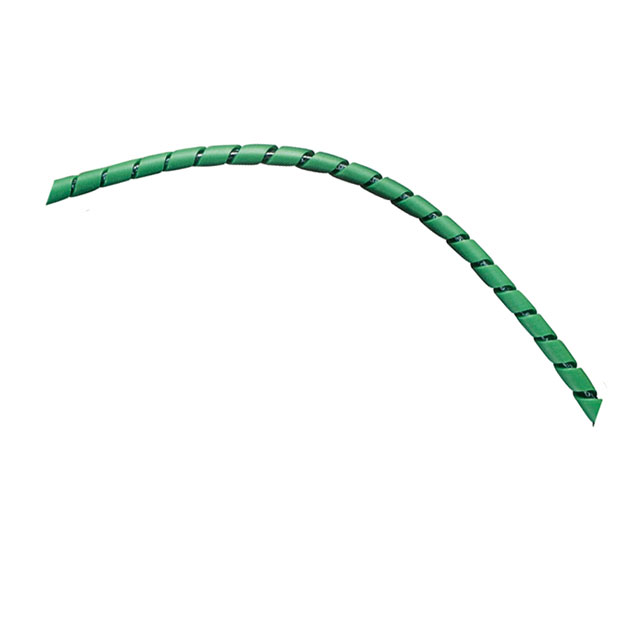

Panduit Corp T50F-C5	Green	Spiral Wrap	Polyethylene (PE)	UL94 HB	30.48 m	100 '	12.7 mm	0.5 in	-40 C	50 °C	Harness	4 in	101.6 mm	1.52 mm	0.06 in	Abrasion Resistant
