887-018 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 18POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Color	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Type	Mounting Type	Read Out	Termination	Number of Positions	Number of Rows [custom]	Contact Finish	Flange Feature	Gender	Number of Positions/Bay/Row	Contact Material	Termination Rows	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows	Number of Positions/Bay/Row [custom]
EDAC Inc. 887-018-540-808	Polyphenylene Sulfide (PPS)	2	Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	Wire Wrap	18	2	Gold	4-40 Threaded Insert Top Mount Opening	Female	9	Copper Alloy
EDAC Inc. 887-018-541-112	Polyphenylene Sulfide (PPS)		Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Single Edge	Cantilever	Through Hole	Single	Wire Wrap	18		Gold	Flush Mount Side Opening Unthreaded	Female		Copper Alloy	1	0.128 "	3.25 mm	1	18
EDAC Inc. 887-018-544-603	Polyphenylene Sulfide (PPS)		Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Single Edge	Cantilever	Through Hole	Single	Wire Wrap	18		Gold	Floating Bobbin Top Mount Opening	Female		Copper Alloy	1	0.116 "	2.95 mm	1	18
EDAC Inc. 887-018-524-107	Polyphenylene Sulfide (PPS)		Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Single Edge	Cantilever	Through Hole	Single	Solder	18		Gold	Flush Mount M3 Threaded Insert Top Opening	Female		Copper Alloy	1			1	18
EDAC Inc. 887-018-544-112	Polyphenylene Sulfide (PPS)		Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Single Edge	Cantilever	Through Hole	Single	Wire Wrap	18		Gold	Flush Mount Side Opening Unthreaded	Female		Copper Alloy	1	0.128 "	3.25 mm	1	18
EDAC Inc. 887-018-521-104	Polyphenylene Sulfide (PPS)		Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Single Edge	Cantilever	Through Hole	Single	Solder	18		Gold	Flush Mount Top Opening Unthreaded	Female		Copper Alloy	1	0.156 "	3.96 mm	1	18
EDAC Inc. 887-018-521-803	Polyphenylene Sulfide (PPS)	2	Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	Solder	18	2	Gold	Floating Bobbin Top Mount Opening	Female	9	Copper Alloy		0.116 "	2.95 mm

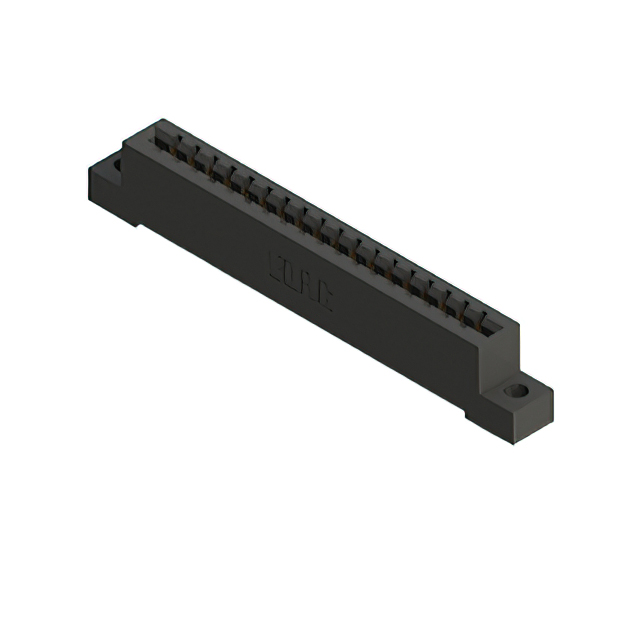

EDAC Inc. 887-018-541-104	Polyphenylene Sulfide (PPS)		Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Single Edge	Cantilever	Through Hole	Single	Wire Wrap	18		Gold	Flush Mount Top Opening Unthreaded	Female		Copper Alloy	1	0.156 "	3.96 mm	1	18
EDAC Inc. 887-018-523-203	Polyphenylene Sulfide (PPS)	2	Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	Solder	18	2	Gold	Floating Bobbin Flush Mount	Female	9	Copper Alloy		0.116 "	2.95 mm
EDAC Inc. 887-018-524-602	Polyphenylene Sulfide (PPS)		Black	3.96 mm	0.156 in	0.07 in 1.78 mm	0.054 in 1.37 mm	125 °C	-40 C	0.25 Ám	10 Áin	Non Specified - Single Edge	Cantilever	Through Hole	Single	Solder	18		Gold		Female		Copper Alloy	1	0.128 "	3.25 mm	1	18
