FUSE 5X20 C/CODE PGT M 3.15A/250V (P)
Description
AI
5x20mm medium- acting glass body fuse designed to UL specification.
Beta
⌘K
FUSE 5X20 C/CODE PGT M 3.15A/250V (P)
FUSE 5X20 C/CODE PGT M 3.15A/250V (P)
| Part | Voltage Rating - AC | Fuse Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Package / Case [x] | Package / Case [y] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Mounting Type | Melting I²t | Breaking Capacity @ Rated Voltage | Response Time | Approval Agency | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 250 V | Cartridge Glass | -55 C | 125 °C | 3.15 A | 5 mm | 20 mm | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Requires Holder | 29.795 | 100 A | Medium Blow | CE CSA K-Mark PSE UL | |

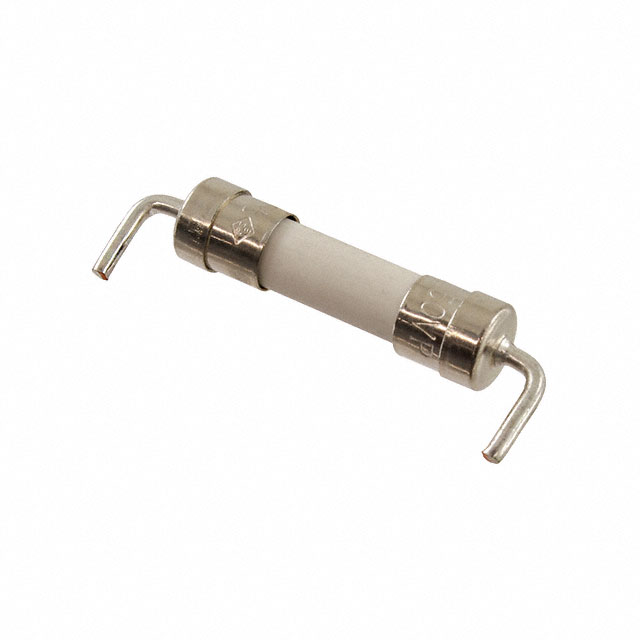

 LITTELFUSE | 250 V | Cartridge Ceramic | -55 C | 125 °C | 6 A | 5 mm | 20 mm | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | Through Hole | 33.015 I²t | 200 A | Medium Blow | CE CSA K-Mark PSE UL | Axial |
LITTELFUSE | 250 V | Cartridge Glass | -55 C | 125 °C | 1.6 A | 5 mm | 20 mm | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Requires Holder | 6.14 | 100 A | Medium Blow | CE CSA K-Mark PSE UL | |
LITTELFUSE | 250 V | Cartridge Glass | -55 C | 125 °C | 1.25 A | 5 mm | 20 mm | 20 mm | 0.205 in | 0.787 " | 5.2 mm | Requires Holder | 3.39 | 100 A | Medium Blow | CE CSA K-Mark PSE UL |
