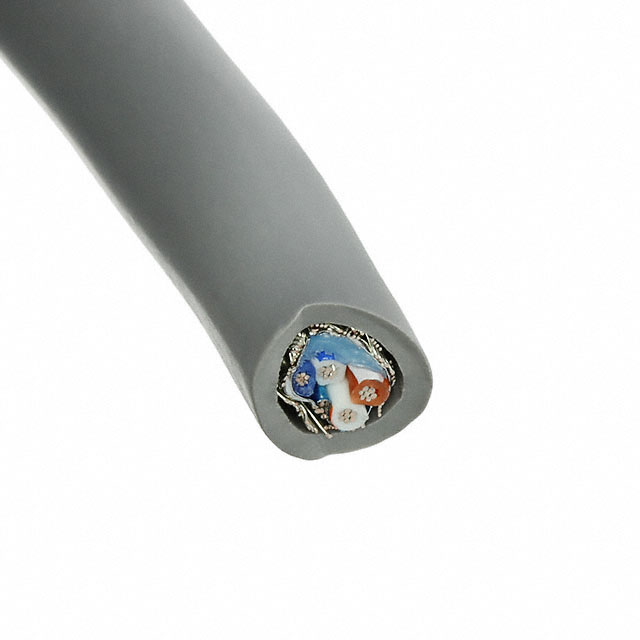

M3420 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 4COND 24AWG 3000'
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Features | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Length | Length | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Conductor Material | Ratings | Conductor Insulation | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 7 | 32 AWG | Multi-Pair | Drain Wire Rip Cord | Slate | 6.53 mm | 0.257 in | 300 VDC | 914.4 m | 3000 ' | 80 °C | -20 ░C | Braid Foil | Copper Tinned | UL Style 2919 | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 4 | 24 AWG |
ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 7 | 32 AWG | Multi-Pair | Drain Wire Rip Cord | Slate | 6.53 mm | 0.257 in | 300 VDC | 152.4 m | 500 ft | 80 °C | -20 ░C | Braid Foil | Copper Tinned | UL Style 2919 | Polypropylene (PP) | Poly-Vinyl Chloride (PVC) | 0.035 in | 0.889 mm | 4 | 24 AWG |
