APF3236 Series

Catalog

LED RGB CLEAR 6SMD

Part	Configuration	Voltage - Forward (Vf) (Typ)	Lens Transparency	Wavelength - Peak	Color	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Color	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Height (Max) [Max] [z]	Lens Style	Wavelength - Dominant	Package / Case	Supplier Device Package	Lens Size [x]	Lens Size [y]	Mounting Type	Wavelength - Peak	Height (Max) [z]	Current - Test	Wavelength - Dominant	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Kingbright APF3236LSEEZGKQBKC	Independent	2.1 V 3.1 V 3.1 V	Clear	460 nm 515 nm 630 nm	Blue Green Red	2 mA	2 mA	2 mA	15 mcd	10 mcd	60 mcd	Colorless	3.2 mm	3.6 mm	120 °	1.3 mm	Rectangle with Flat Top	465 nm 525 nm 621 nm	6-SMD No Lead	6-SMD	3.6 mm	1.9 mm	Surface Mount
Kingbright APF3236SURKVGAPBA	Independent		Clear		Blue Green Red				220 mcd	60 mcd	150 mcd	Colorless	3.2 mm	3.6 mm	120 °		Rectangle with Flat Top		6-SMD No Lead	SMD	2 mm	3.6 mm	Surface Mount	468nm Blue 520nm Green 650nm Red	1.1 mm	20mA Blue 20mA Green 20mA Red	470nm Blue 525nm Green 630nm Red	3.2 V	3.2 V	1.95 V
Kingbright APF3236SEKJ3ZGKQBKC	Independent	2.2 V 3.3 V 3.3 V	Clear	460 nm 515 nm 640 nm	Blue Green Red				350 mcd	70 mcd	320 mcd	Colorless	3.6 mm	3.2 mm	120 °		Rectangle with Flat Top		6-SMD No Lead	6-SMD	3.6 mm	1.9 mm	Surface Mount		1.1 mm	20mA Blue 20mA Green 20mA Red	465nm Blue 525nm Green 625nm Red
Kingbright APF3236SEEZGKQBKC	Independent	2 V 3.3 V 3.3 V	Clear	460 nm 515 nm 630 nm	Blue Green Red				140 mcd	70 mcd	330 mcd	Colorless	3.2 mm	3.6 mm	120 °	1.3 mm	Rectangle with Flat Top	465 nm 525 nm 621 nm	6-SMD No Lead	6-SMD	3.6 mm	1.9 mm	Surface Mount			20mA Blue 20mA Green 20mA Red

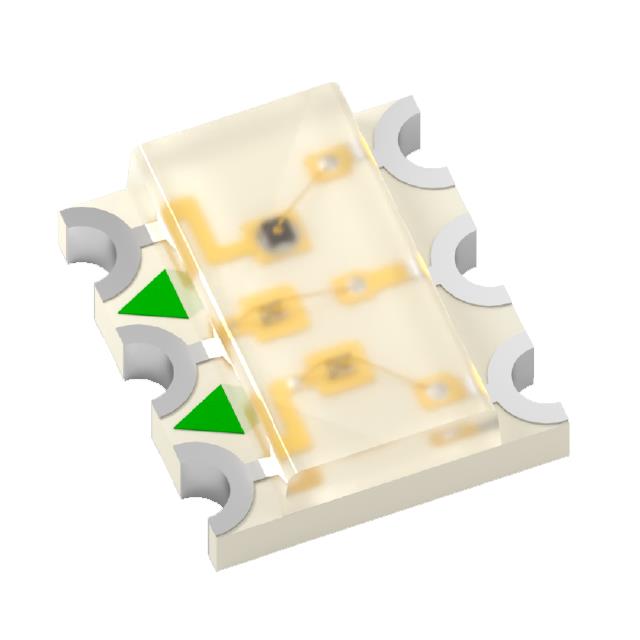

Kingbright APF3236SEEZGQBDC	Independent	2 V 3.3 V 3.3 V	Clear	460 nm 515 nm 630 nm	Blue Green Red				140 mcd	70 mcd	330 mcd	Colorless	3.2 mm	3.6 mm	120 °		Rectangle with Flat Top	465 nm 525 nm 621 nm	6-SMD No Lead	SMD	2 mm	3.6 mm	Surface Mount		1.1 mm	20mA Blue 20mA Green 20mA Red
Kingbright APF3236LSEKJ3ZGKQBKC	Independent	1.8 V 2.7 V 2.7 V	Clear	460 nm 515 nm 640 nm	Blue Green Red	2 mA	2 mA	2 mA	40 mcd	10 mcd	60 mcd	Colorless	3.6 mm	3.2 mm	120 °		Rectangle with Flat Top		6-SMD No Lead	6-SMD	3.6 mm	1.9 mm	Surface Mount		1.1 mm		465nm Blue 525nm Green 625nm Red
