LP38692-ADJ Series

1-A, 10-V, adjustable low-dropout voltage regulator with enable

Catalog

1-A, 10-V, adjustable low-dropout voltage regulator with enable

Part	Current - Output	Regulator Type	Voltage - Input [Min]	Voltage - Input [Max]	Channels per IC	Voltage - Output	Supplied Contents	Board Type	Current - Supply (Max) [Max]	Output Type	Number of Regulators	Voltage - Output (Min/Fixed)	Mounting Type	Voltage - Output (Max) [Max]	Supplier Device Package	Voltage - Input (Max) [Max]	Current - Quiescent (Iq)	Output Configuration	Protection Features	PSRR	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Output Type	Package / Case

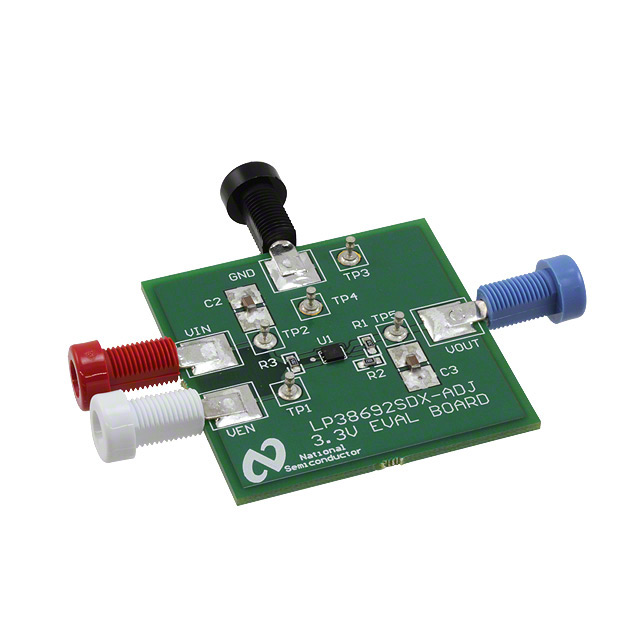

Texas Instruments LP38692EVAL	1 A	Positive Adjustable	2.7 V	10 V	1 - Single	3.3 V	Board(s)	Fully Populated
Texas Instruments LP38692SD-ADJ	1 A								100 çA	Adjustable	1	1.25 V	Surface Mount	9 V	6-WSON (3x3)	10 V	55 µA	Positive	Over Temperature	55 dB	125 °C	-40 °C
Texas Instruments LP38692SDX-1.8/NOPB	1 A								100 çA		1	1.8 V	Surface Mount		6-WSON (3x3)	10 V	55 µA	Positive	Over Temperature	55 dB	125 °C	-40 °C	1.6 V	1.81 mOhm
Texas Instruments LP38692MP-5.0	1 A								100 çA		1	5 V	Surface Mount		SOT-223-5	10 V	55 µA	Positive	Over Temperature	55 dB	125 °C	-40 °C	0.8 V	1.81 mOhm	TO-261-5 TO-261AB
Texas Instruments LP38692SD-3.3	1 A								100 çA		1	3.3 V	Surface Mount		6-WSON (3x3)	10 V	55 µA	Positive	Over Temperature	55 dB	125 °C	-40 °C	1 V	1.81 mOhm
Texas Instruments LP38692MP-2.5	1 A								100 çA		1	2.5 V	Surface Mount		SOT-223-5	10 V	55 µA	Positive	Over Temperature	55 dB	125 °C	-40 °C	1.3 V	1.81 mOhm	TO-261-5 TO-261AB
Texas Instruments LP38692MPX-ADJ/NOPB	1 A								100 çA	Adjustable	1	1.25 V	Surface Mount	9 V	SOT-223-5	10 V	55 µA	Positive	Over Temperature	55 dB	125 °C	-40 °C			TO-261-5 TO-261AB
Texas Instruments LP38692MP-ADJ	1 A								100 çA	Adjustable	1	1.25 V	Surface Mount	9 V	SOT-223-5	10 V	55 µA	Positive	Over Temperature	55 dB	125 °C	-40 °C			TO-261-5 TO-261AB
Texas Instruments LP38692SD-5.0/NOPB	1 A								100 çA		1	5 V	Surface Mount		6-WSON (3x3)	10 V	55 µA	Positive	Over Temperature	55 dB	125 °C	-40 °C	0.8 V	1.81 mOhm
Texas Instruments LP38692MPX-5.0/NOPB	1 A								100 çA		1	5 V	Surface Mount		SOT-223-5	10 V	55 µA	Positive	Over Temperature	55 dB	125 °C	-40 °C	0.8 V	1.81 mOhm	TO-261-5 TO-261AB

Catalog

1-A, 10-V, adjustable low-dropout voltage regulator with enable

Key Features

• Input Voltage Range: 2.7 V to 10 VOutput Voltage Range: 1.25 V to 9 V2.5% Adjust Pin Voltage Accuracy (25°C)Low Dropout Voltage: 450 mV at 1 A (5-V Typical VOUT)Precision (Trimmed) Bandgap ReferenceEnsured Specs for –40°C to +125°C1-µA Off-State Quiescent CurrentThermal Overload ProtectionFoldback Current LimitingEnable (EN) Pin (LP38692-ADJ)5-Pin SOT-223 and 6-Pin WSON PackagesInput Voltage Range: 2.7 V to 10 VOutput Voltage Range: 1.25 V to 9 V2.5% Adjust Pin Voltage Accuracy (25°C)Low Dropout Voltage: 450 mV at 1 A (5-V Typical VOUT)Precision (Trimmed) Bandgap ReferenceEnsured Specs for –40°C to +125°C1-µA Off-State Quiescent CurrentThermal Overload ProtectionFoldback Current LimitingEnable (EN) Pin (LP38692-ADJ)5-Pin SOT-223 and 6-Pin WSON Packages

Description

The LP38690-ADJ and LP38692-ADJ low dropout CMOS linear regulators provide 2.5% precision reference voltage, extremely low dropout voltage (450 mV at 1-A load current, VOUT= 5 V) and excellent AC performance utilizing ultralow equivalent series resistance (ESR) ceramic output capacitors. The low thermal resistance of the WSON and SOT-223 packages allow the full operating current to be used even in high ambient temperature environments. The use of a PMOS power transistor means that no DC base drive current is required to bias it allowing ground pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature. Dropout Voltage: 450 mV (typical) at 1 A (typical 5-V out) Ground Pin Current: 55 µA (typical) at full loadAdjust Pin Voltage: 2.5% (25°C) accuracy The LP38690-ADJ and LP38692-ADJ low dropout CMOS linear regulators provide 2.5% precision reference voltage, extremely low dropout voltage (450 mV at 1-A load current, VOUT= 5 V) and excellent AC performance utilizing ultralow equivalent series resistance (ESR) ceramic output capacitors. The low thermal resistance of the WSON and SOT-223 packages allow the full operating current to be used even in high ambient temperature environments. The use of a PMOS power transistor means that no DC base drive current is required to bias it allowing ground pin current to remain below 100 µA regardless of load current, input voltage, or operating temperature. Dropout Voltage: 450 mV (typical) at 1 A (typical 5-V out) Ground Pin Current: 55 µA (typical) at full loadAdjust Pin Voltage: 2.5% (25°C) accuracy
