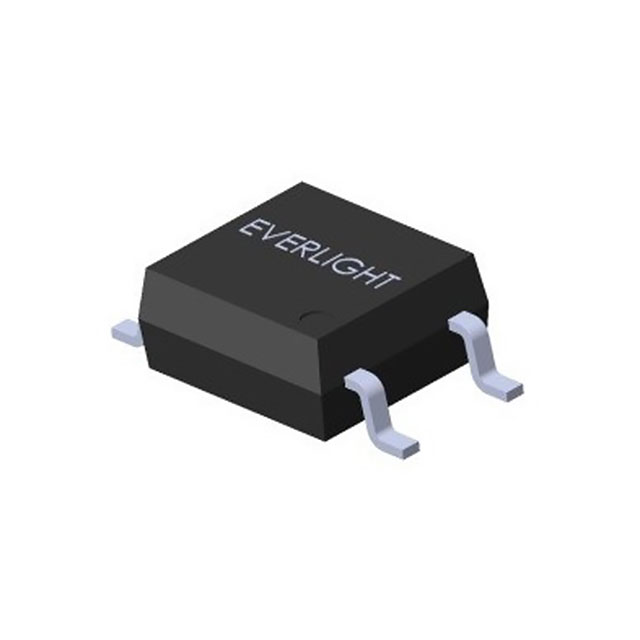

EL357 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

OPTOISOLATOR 3.75KV TRANS 4-SOP

Part	Input Type	Current - Output / Channel [custom]	Voltage - Isolation	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Output Type	Current Transfer Ratio (Max) [Max]	Number of Channels [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Vce Saturation (Max) [Max]	Current Transfer Ratio (Max)
Everlight Electronics Co Ltd EL357NB-G	DC	50 mA	3750 Vrms	50 mA	130 %	4 µs	3 µs	Transistor	260 %	1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV
Everlight Electronics Co Ltd EL357ND-G	DC	50 mA	3750 Vrms	50 mA	300 %	4 µs	3 µs	Transistor	600 %	1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV
Everlight Electronics Co Ltd EL357ND(TA)-VG	DC	50 mA	3750 Vrms	50 mA	300 %	4 µs	3 µs	Transistor	600 %	1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV
Everlight Electronics Co Ltd EL357NB(TA)-VG	DC	50 mA	3750 Vrms	50 mA	130 %	4 µs	3 µs	Transistor	260 %	1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV
Everlight Electronics Co Ltd EL357NC-G	DC	50 mA	3750 Vrms	50 mA	200 %	4 µs	3 µs	Transistor		1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV	400 %
Everlight Electronics Co Ltd EL357NA(TB)-G	DC	50 mA	3750 Vrms	50 mA	80 %	4 µs	3 µs	Transistor		1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV	160 %
Everlight Electronics Co Ltd EL357NB(TB)-G	DC	50 mA	3750 Vrms	50 mA	130 %	4 µs	3 µs	Transistor	260 %	1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV
Everlight Electronics Co Ltd EL357N(C)(TA)-VG	DC	50 mA	3750 Vrms	50 mA	200 %	4 µs	3 µs	Transistor		1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV	400 %
Everlight Electronics Co Ltd EL357NF-G	DC	50 mA	3750 Vrms	50 mA	150 %	4 µs	3 µs	Transistor	300 %	1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV
Everlight Electronics Co Ltd EL357NB(TB)-VG	DC	50 mA	3750 Vrms	50 mA	130 %	4 µs	3 µs	Transistor	260 %	1	Surface Mount	-55 C	110 °C	4-SMD Gull Wing	200 mV
