LD09P24 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

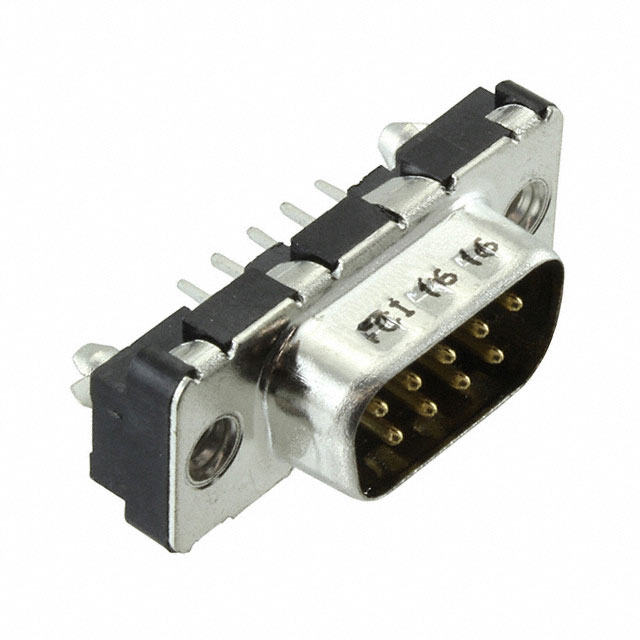

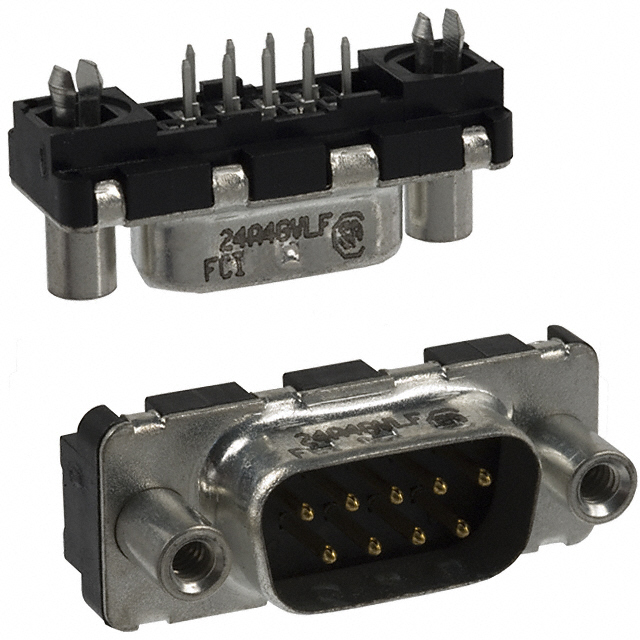

CONN D-SUB PLUG 9POS VERT SLDR
| Part | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Current Rating (Amps) | Mounting Type | Connector Type | Features | Material Flammability Rating | Contact Type | Termination | Contact Finish | Connector Style | Number of Positions | Contact Finish Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | 250 V | -55 C | 105 ░C | Thermoplastic | Black | 2 | 1 | DE E | Steel Tin-Nickel Plated | 5 A | Through Hole | Plug Male Pins | Board Lock Grounding Indents | UL94 V-0 | Signal | Solder | Gold | D-Sub | 9 | Flash | Housing/Shell | 4-40 |
 Amphenol ICC (FCI) | Copper Alloy | 250 V | -55 C | 105 ░C | Thermoplastic | Black | 2 | 1 | DE E | Steel Tin-Nickel Plated | 5 A | Through Hole | Plug Male Pins | Board Lock Grounding Indents | UL94 V-0 | Signal | Solder | Gold | D-Sub | 9 | Flash | 4-40 Mating Side Female Screwlock |
