292134 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

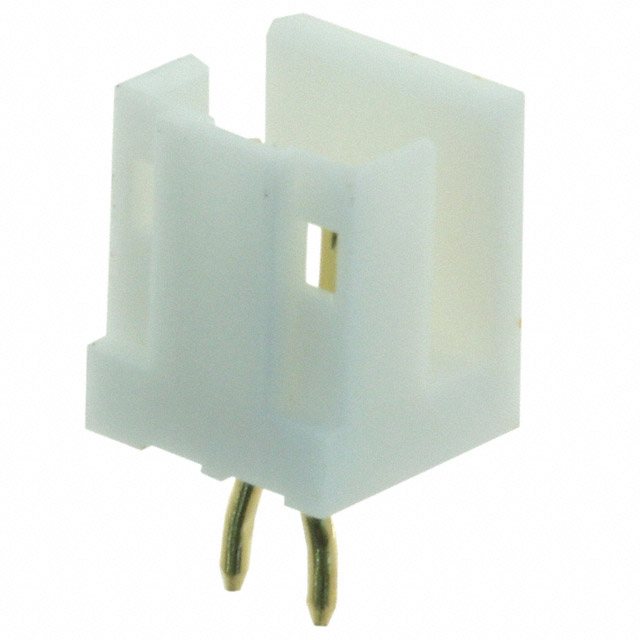

CT BOX HDR ASSY V 3P AU W/KINK
| Part | Applications | Contact Length - Mating | Contact Length - Mating | Number of Rows | Contact Length - Post | Contact Length - Post [x] | Insulation Height | Insulation Height | Insulation Material | Current Rating (Amps) | Contact Type | Termination | Contact Shape | Insulation Color | Fastening Type | Voltage Rating | Mounting Type | Material Flammability Rating | Number of Positions Loaded | Pitch - Mating [x] | Pitch - Mating [x] | Connector Type | Contact Finish - Mating | Shrouding | Overall Contact Length | Overall Contact Length | Style | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | General Purpose | 4.2 mm | 0.165 in | 1 | 3.2 mm | 0.126 in | 6.8 mm | 0.268 in | Polyamide (PA66) Nylon 6/6 | Varies by Wire Gauge | Male Pin | Kinked Pin Solder | Circular | Natural | Detent Lock | 125 VAC | Through Hole | UL94 V-0 | All | 0.079 in | 2 mm | Header | Gold | Shrouded - 4 Wall | 9.09 mm | 0.358 in | Board to Cable/Wire | Brass | |
 TE Connectivity Raychem Cable Protection | General Purpose | 4.2 mm | 0.165 in | 1 | 3.2 mm | 0.126 in | 6.8 mm | 0.268 in | Polyamide (PA66) Nylon 6/6 | Varies by Wire Gauge | Male Pin | Kinked Pin Solder | Circular | Natural | Detent Lock | 125 VAC | Through Hole | UL94 V-0 | All | 0.079 in | 2 mm | Header | Gold | Shrouded - 4 Wall | 9.09 mm | 0.358 in | Board to Cable/Wire | Brass | 2 |
