A51CS Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 40A 24V
| Part | Coil Resistance | Contact Material | Coil Power | Coil Voltage | Switching Voltage [Max] | Coil Type | Features | Contact Rating (Current) | Contact Form | Must Operate Voltage | Termination Style | Must Release Voltage | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current | Release Time | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

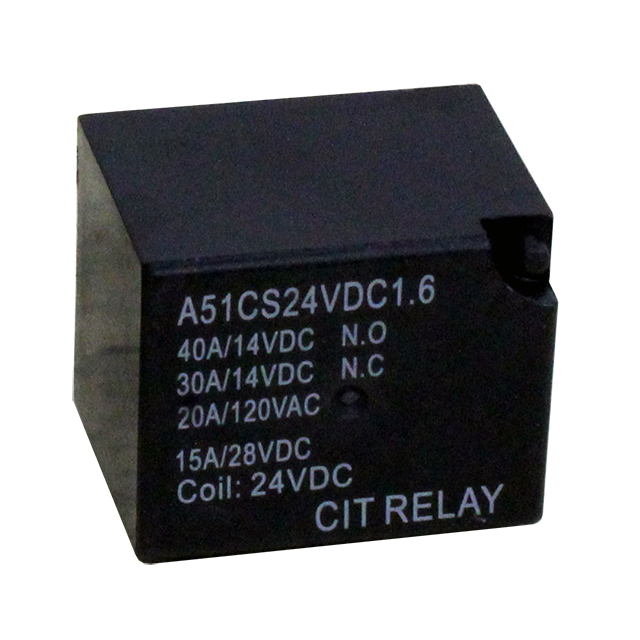

 CIT Relay and Switch | 360 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 24 VDC | 75 VDC 380 VAC | Non Latching | Sealed - Fully | 40 A | SPDT (1 Form C) | 16.8 VDC | PC Pin | 2.4 VDC | 5 ms | 85 °C | -40 C | 66.7 mA | 3 ms | Through Hole |

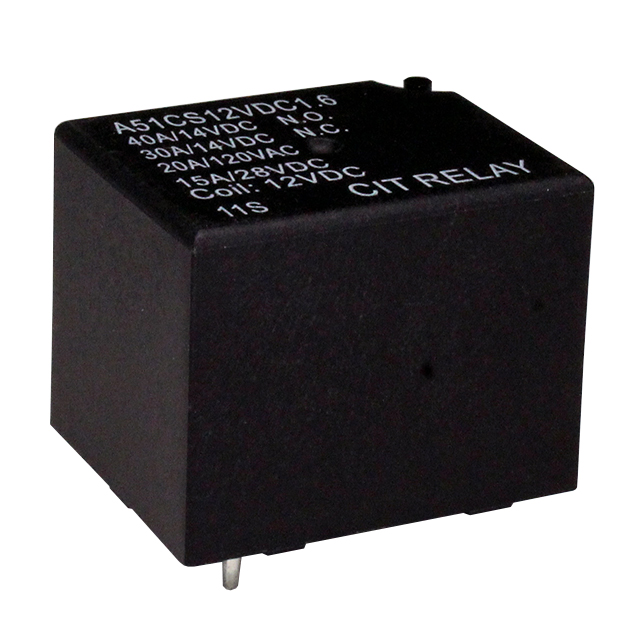

 CIT Relay and Switch | 90 Ohms | Silver Tin Oxide (AgSnO) | 1.6 W | 12 VDC | 75 VDC 380 VAC | Non Latching | Sealed - Fully | 40 A | SPDT (1 Form C) | 8.4 VDC | PC Pin | 1.2 VDC | 5 ms | 85 °C | -40 C | 133.3 mA | 3 ms | Through Hole |
