USB1055 Series
Manufacturer: GCT
Beta
⌘K

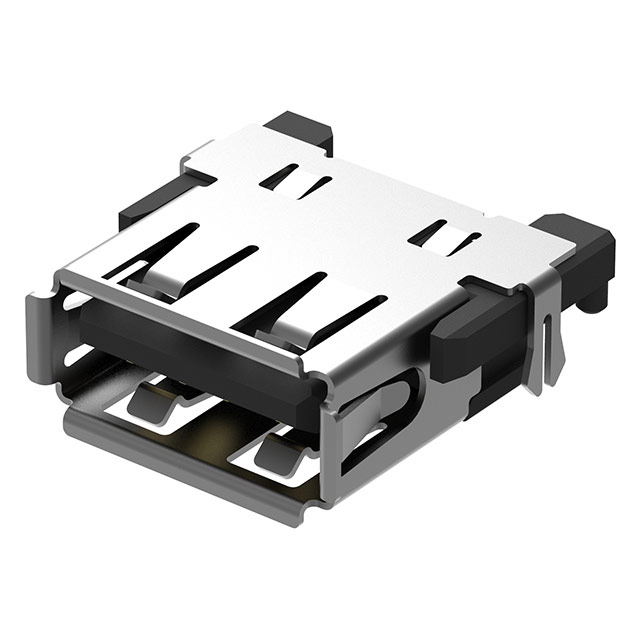

USB CONNECTOR, USB TYPE A, USB 2.0, RECEPTACLE, 4 POSITIONS, SURFACE MOUNT, THROUGH HOLE MOUNT
| Part | Contact Finish | Shell/Shielding Material | Material Flammability Rating | Insulation Color | Mounting Type | Voltage - Rated | Termination | Features | Mounting Feature | Gender | Connector Type | Specifications | Number of Contacts | Number of Ports | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Brass | UL94 V-0 | Black | Board Edge Cutout Surface Mount Through Hole Right Angle | 30 V | Solder | Board Lock | Horizontal Mid Mount | Receptacle | USB-A (USB TYPE-A) | USB 2.0 | 4 | 1 | 1.5 A | 85 °C | -40 C | Shielded | 1500 |
