EL1017 Series

Catalog

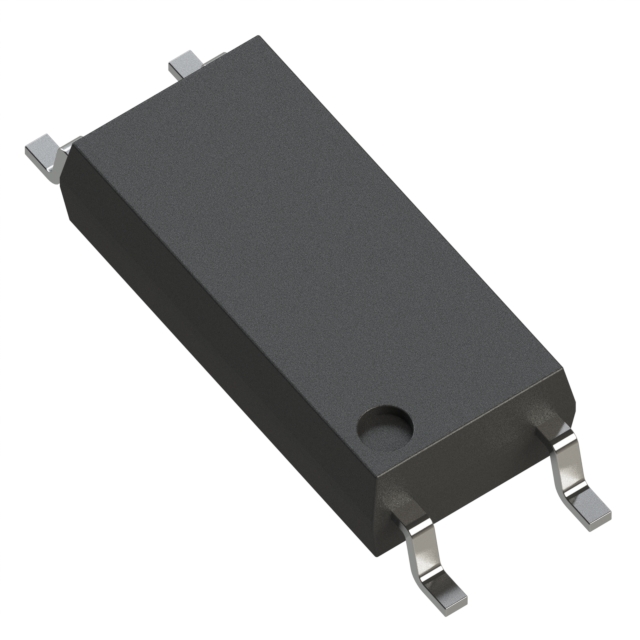

OPTOISOLTR 5KV TRANSISTOR 4-SOP

Part	Mounting Type	Rise / Fall Time (Typ)	Vce Saturation (Max) [Max]	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Voltage - Forward (Vf) (Typ)	Output Type	Current Transfer Ratio (Max)	Number of Channels [custom]	Input Type	Current - DC Forward (If) (Max) [Max]	Package / Case	Current Transfer Ratio (Min)	Current - Output / Channel [custom]	Operating Temperature [Min]	Operating Temperature [Max]
Everlight Electronics Co Ltd EL1017(TB)	Surface Mount	2 µs 3 µs	300 mV	4 µs	3 µs	1.45 V	Transistor	160 %	1	DC	60 mA	4-SMD Gull Wing	80 %	50 mA	-55 C	110 °C
Everlight Electronics Co Ltd EL1017-G	Surface Mount	2 µs 3 µs	300 mV	4 µs	3 µs	1.45 V	Transistor	160 %	1	DC	60 mA	4-SMD Gull Wing	80 %	50 mA	-55 C	110 °C
Everlight Electronics Co Ltd EL1017-VG	Surface Mount	2 µs 3 µs	300 mV	4 µs	3 µs	1.45 V	Transistor	160 %	1	DC	60 mA	4-SMD Gull Wing	80 %	50 mA	-55 C	110 °C
Everlight Electronics Co Ltd EL1017(TA)-VG	Surface Mount	2 µs 3 µs	300 mV	4 µs	3 µs	1.45 V	Transistor	160 %	1	DC	60 mA	4-SMD Gull Wing	80 %	50 mA	-55 C	110 °C
