LHS-09 Series
Manufacturer: Adam Tech
Beta
⌘K

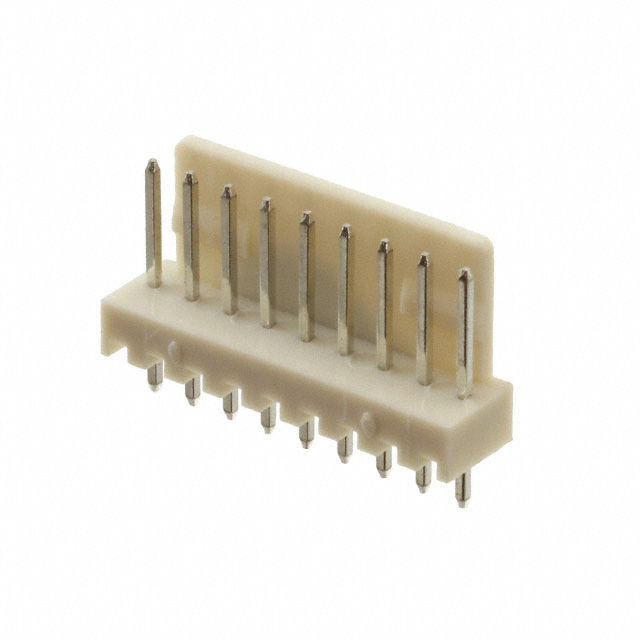

CONN WIRE TO BOARD HDR 9 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE
| Part | Number of Rows | Insulation Material | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Number of Positions | Contact Shape | Overall Contact Length | Overall Contact Length | Contact Material | Fastening Type | Termination | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post | Style | Insulation Height [z] | Insulation Height | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Amps) | Contact Type | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Shrouding | Connector Type | Insulation Color | Contact Finish - Post | Contact Length - Post | Insulation Height [z] | Contact Length - Mating | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 1 | Nylon 6/6 Polyamide (PA66) | 7.6 mm | 0.299 in | 9 | Square | 14.2 mm | 0.559 " | Brass | Friction Lock | Solder | All | 0.134 " | 3.4 mm | Board to Cable/Wire | 0.327 " | 8.3 mm | 250 VAC | 85 °C | -25 °C | Through Hole | 3 A | Male Pin | 0.1 " | 2.54 mm | UL94 V-0 | Shrouded - 1 Wall | Header | White | Tin | ||||

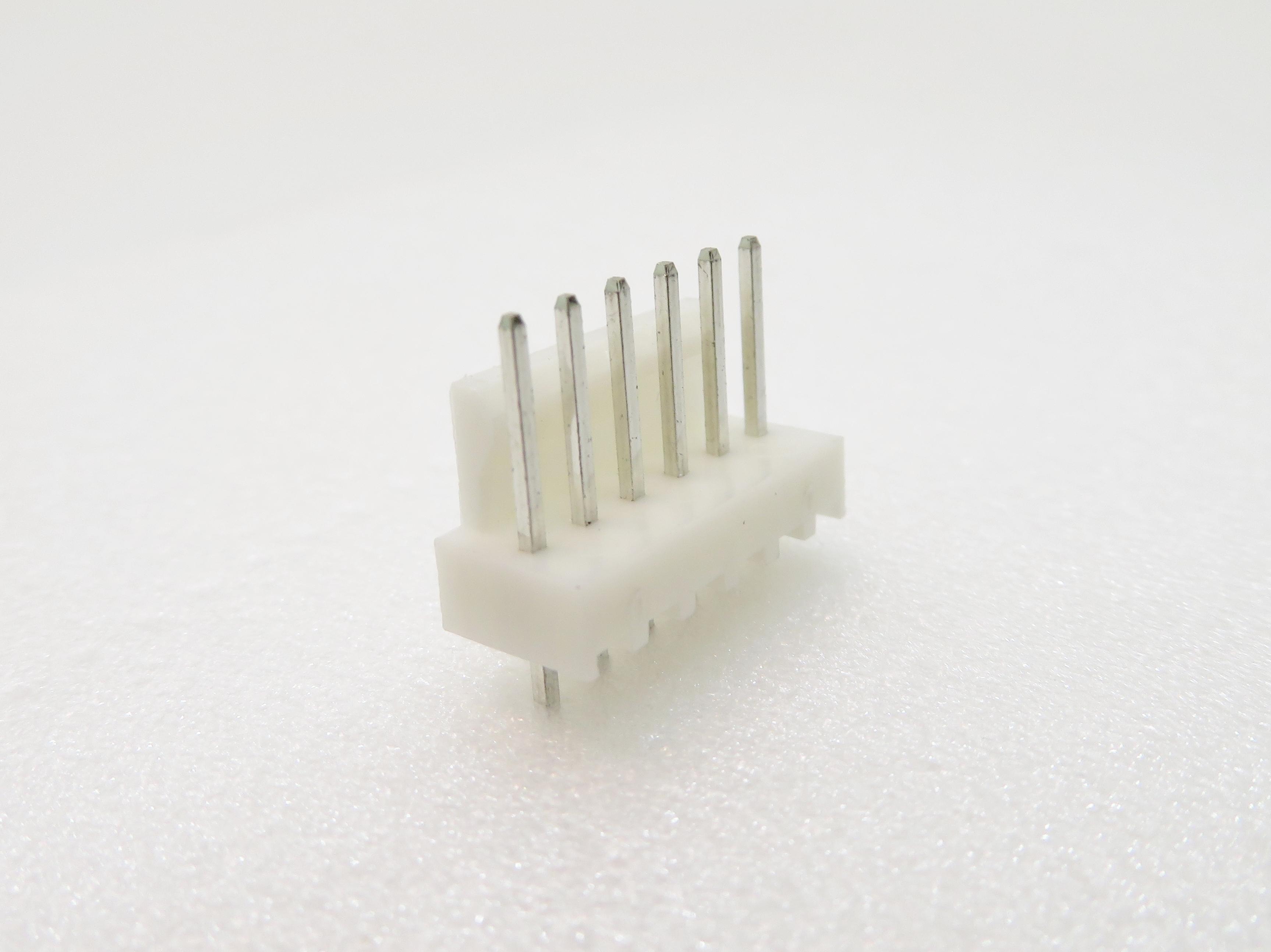

 Adam Tech | 1 | Nylon 6/6 Polyamide (PA66) | 9 | Square | Brass | Friction Lock | Solder | All | 3.3 mm | Board to Cable/Wire | 0.252 " | 250 VAC | 85 °C | -25 °C | Right Angle Through Hole | 3 A | Male Pin | 0.1 " | 2.54 mm | UL94 V-0 | Shrouded - 1 Wall | Header | White | Tin | 0.13 " | 6.4 mm | 6.7 mm | 0.264 in |
