FFB0424 Series

Catalog

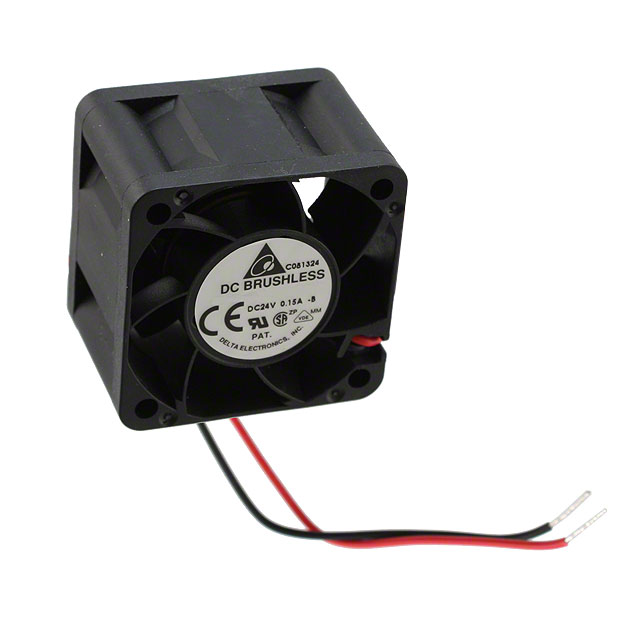

DC FAN AXIAL BALL BEARING 24V 14V TO 27.6V 13.24CFM 41DB 40 X 40 X 28MM

Part	Voltage Range [Max]	Voltage Range [Min]	Material - Blade	Lifetime @ Temp.	Material - Frame	Fan Type	Width [x]	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Voltage - Rated	RPM	Termination	Weight [custom]	Weight [custom]	Static Pressure	Static Pressure	Air Flow	Air Flow	Current Rating (Amps)	Features
Delta Electronics FFB0424HHN	27.6 VDC	14	Plastic	70000 Hrs	Plastic	Tubeaxial	28 mm	CE CSA UL VDE	40 mm	40 mm	Ball	1.92 W	70 °C	-10 °C	41 dB	24 VDC	8000 RPM	2 Wire Leads	32.21 g	0.071 lb	0.37 in H2O	92.2 Pa	13.2 CFM	0.37 m³/min

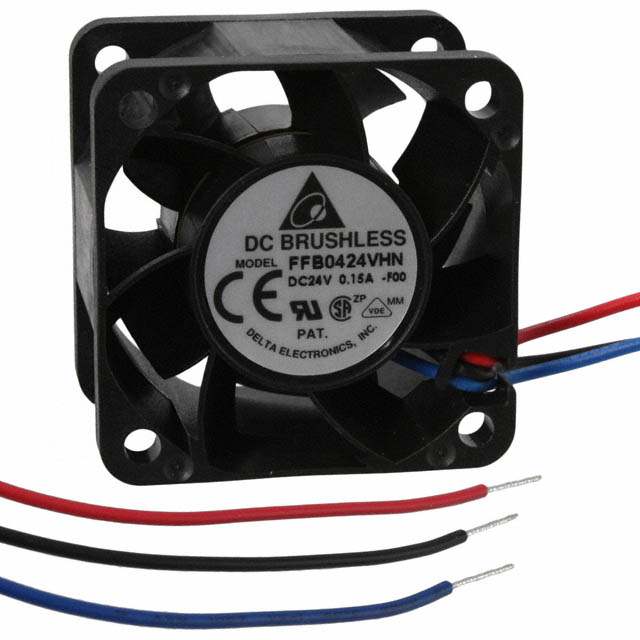

Delta Electronics FFB0424VHN-F00	26.4 VDC	14 VDC	Plastic	70000 Hrs	Plastic	Tubeaxial	28 mm	CE CSA UL VDE	40 mm	40 mm	Ball	2.4 W	60 °C	-10 °C	45 dB(A)	24 VDC	9500 RPM	3 Wire Leads	32.21 g	0.071 lb	0.509 in H2O	126.8 Pa	15.8 CFM	0.442 m³/min	100 mA	Locked Rotor Protection Speed Sensor (Tach)

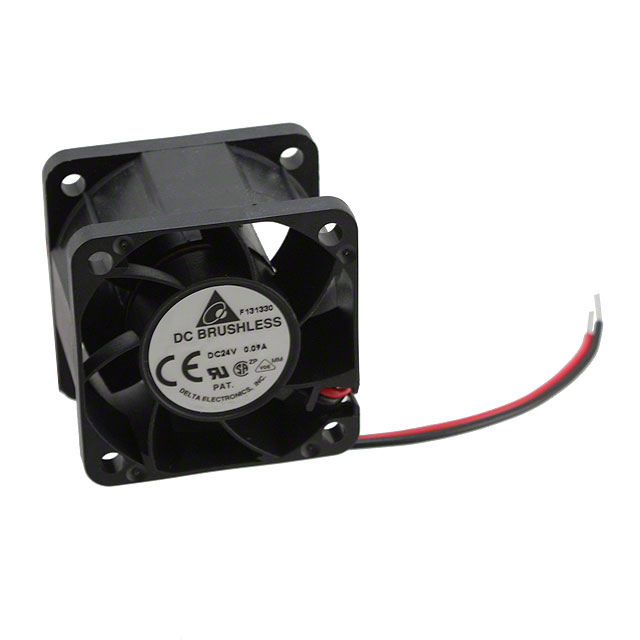

Delta Electronics FFB0424HN	27.6 VDC	14	Plastic	70000 Hrs	Plastic	Tubeaxial	28 mm	CE CSA UL VDE	40 mm	40 mm	Ball	1.44 W	70 °C	-10 °C	36 dB	24 VDC	6500 RPM	2 Wire Leads	32.21 g	0.071 lb	0.248 in H2O	61.8 Pa	10.6 CFM	0.297 m³/min	60 mA
Delta Electronics FFB0424VHN-TZT4	26.4 VDC	21.6 VDC	Plastic	70000 Hrs	Plastic	Tubeaxial	28 mm	CE CSA UL VDE	40 mm	40 mm	Ball	2.4 W	70 °C	-10 °C	41.9 dB(A)	24 VDC	9500 RPM	4 Wire Leads	32.21 g	0.071 lb	0.509 in H2O	126.8 Pa	15.8 CFM	0.442 m³/min	100 mA	Locked Rotor Protection PWM Control Speed Sensor (Tach)

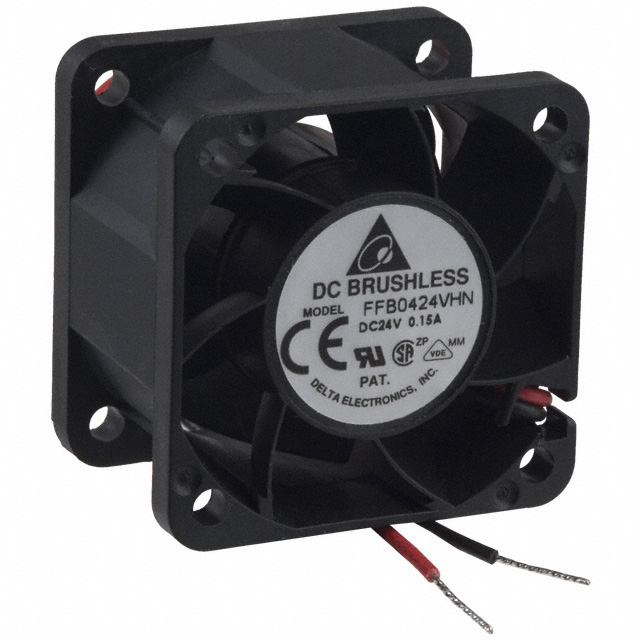

Delta Electronics FFB0424VHN	26.4 VDC	14 VDC	Plastic	70000 Hrs	Plastic	Tubeaxial	28 mm	CE CSA UL VDE	40 mm	40 mm	Ball	2.4 W	60 °C	-10 °C	45 dB(A)	24 VDC	9500 RPM	2 Wire Leads	32.21 g	0.071 lb	0.509 in H2O	126.8 Pa	15.8 CFM	0.442 m³/min	100 mA
Delta Electronics FFB0424VHN-B	26.4 VDC	14 VDC	Plastic	70000 Hrs	Plastic	Tubeaxial	28 mm	CE CSA UL VDE	40 mm	40 mm	Ball	2.4 W	60 °C	-10 °C	42 dB	24 VDC	9500 RPM	2 Wire Leads	32.21 g	0.071 lb	0.509 in H2O	126.8 Pa	15.8 CFM	0.442 m³/min	100 mA
