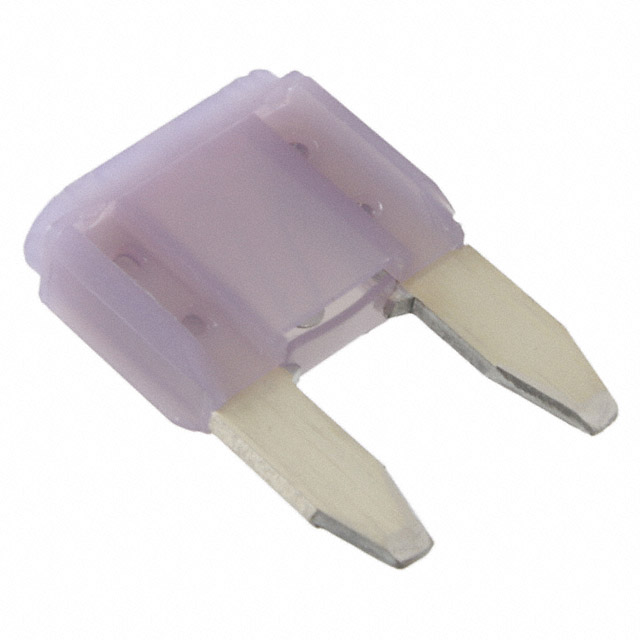

Fuse - Mini 32VDC 3A 500 pc
Description
AI
This 3 A MINI® 32V automotive blade fuse performs reliably in adverse environments and at extreme temperatures despite its miniature design and light weight.
Beta
⌘K
Fuse - Mini 32VDC 3A 500 pc
Fuse - Mini 32VDC 3A 500 pc
| Part | DC Cold Resistance | Approval Agency | Voltage Rating - DC | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Color | Melting I²t | Mounting Type | Breaking Capacity @ Rated Voltage | Current Rating (Amps) | Fuse Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.03375 Ohms | SAE UL | 32 V | Fast Blow | 125 °C | -40 C | 8.8 mm | 0.346 in | 0.15 " | 10.9 mm | 0.429 " | 3.8 mm | Blade Miniature | Violet | 9.4 | Requires Holder | 1 kA | 3 A | Automotive |
