172038 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

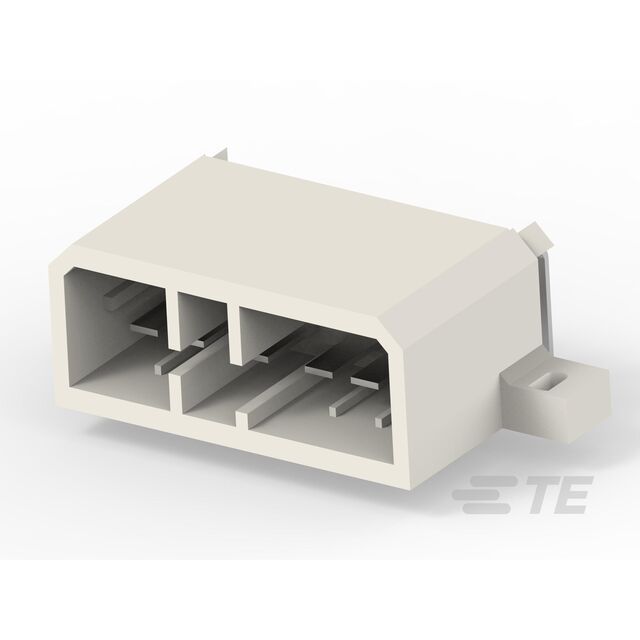

CONN HEADER R/A 11POS
| Part | Applications | Contact Shape | Insulation Color | Contact Type | Fastening Type | Connector Type | Features | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Insulation Material | Style | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height | Termination | Contact Finish - Post | Contact Material | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | General Purpose | Rectangular | Natural | Tab | Locking Ramp | Header | Mounting Flange | All | 0.236 in | 6 mm | Through Hole Right Angle | Polyamide (PA66) Nylon 6/6 | Board to Cable/Wire | 2 | -30 ░C | 105 ░C | 11 | 0.134 in | 3.4 mm | 0.658 " | 16.71 mm | Solder | Tin | Brass | Shrouded - 4 Wall |
